MADE IN ITALY since 1972

NEW DELTA 27-95
NEW DELTA 27M-95

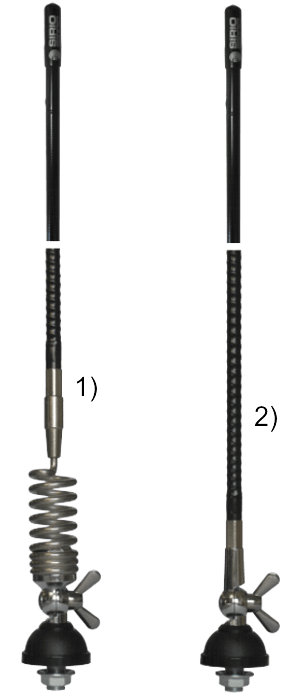

NEW_DELTA_27-95_NEW_DELTA_27M-95
1) NEW DELTA 27M-95
2) NEW DELTA 27-95

Product Number:
P/N: 2203315.01 NEW DELTA 27-95
Included:
Hole mount: N Chrome (P/N:2500102.01)
Cable: 4m/13ft Cable for N or N-PL mounts (P/N:2505705.00)
Screw Bolt
P/N: 2203415.01 NEW DELTA 27M-95
Included:
Hole mount: N Chrome (P/N:2500102.01)
Cable: 4m/13ft Cable for N or N-PL mounts (P/N:2505705.00)
Screw Bolt
Electrical Data:
Type: Helical loaded
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 26.7 ... 27.3 MHz Tunable
Systems: CB 27MHz
Bandwidth: ≥ 900KHz @ SWR ≤ 2
Max Power: 35 Watts (CW) continuous
100 Watts (CW) short time
Cable lenght / type: 4 m (13.12 ft) / RG58
Connector: Not supplied
Mechanical Data:
Materials: Copper, Brass, Stainless steel, Fiberglass
Height (approx): 950 mm / 3.12 ft
Weight (approx):
NEW DELTA 27-95:
390 gr / 0.86 lb
NEW DELTA 27M-95:
500 gr / 1.1 lb
Mounting type: Thru-Hole
Suitable Accessories:
Hole mount: NE Chrome (P/N:2500202.01)
Magnetic Mount: PM-125 S (P/N:2502602.01)
Magnetic Mount: MAG 145 S (P/N:2502702.01)
Bracket: ABN-2 Trunk Mount (P/N:2504105.00)
Bracket: KF Gutter mount (P/N:2504205.00)
Bracket: Asp-1 Chrome (P/N:2504004.00)
Connector: UHF-male (PL-259) (P/N: 2505600.00)
