MEGAWATT 3000 & 4000
MEGAWATT 3000 & 4000 SILVER
High Power Handling Capability

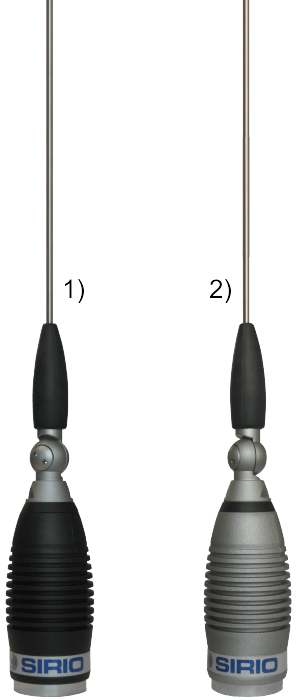

1) MEGAWATT 3000-4000
2) MEGAWATT 3000-4000 SILVER
2) MEGAWATT 3000-4000 SILVER
| Features: |
|---|
| SILVER color available |
Product Number: |
|
|---|---|
| 2211505.23 | MEGAWATT 3000 N
Included: Hole mount: N-PL (P/N:2500502.05) Cable: 4m/13ft Cable for N or N-PL mounts (P/N:2505705.00) |
| 2211505.05 | MEGAWATT 3000 PL |
| 2211605.23 | MEGAWATT 4000 N
Included: Hole mount: N-PL (P/N:2500502.05) Cable: 4m/13ft Cable for N or N-PL mounts (P/N:2505705.00) |
| 2211605.05 | MEGAWATT 4000 PL |
Electrical Data: |
|
|---|---|
| Type: | Base loaded |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: | 27 … 30 MHz Tunable |
| Systems: | CB 27MHz, 10m-HAM |
| Bandwidth: |
MEGAWATT 3000 N:
≥ 1.89MHz @ SWR ≤ 2
MEGAWATT 3000 PL:
≥ 1.89MHz @ SWR ≤ 2
MEGAWATT 4000 N:
≥ 2.58MHz @ SWR ≤ 2
MEGAWATT 4000 PL:
≥ 2.58MHz @ SWR ≤ 2
|
| Max Power: |
MEGAWATT 3000 N:
400 Watts (CW) continuous
1200 Watts (CW) short time MEGAWATT 3000 PL:
400 Watts (CW) continuous
1200 Watts (CW) short time MEGAWATT 4000 N:
600 Watts (CW) continuous
1800 Watts (CW) short time MEGAWATT 4000 PL:
600 Watts (CW) continuous
1800 Watts (CW) short time |
| Grounding protection: | DC-Ground |
| Cable lenght / type: |
MEGAWATT 3000 N:
4 m (13.12 ft) / RG58
MEGAWATT 3000 PL:
0 cm (0 in) / Not supplied
MEGAWATT 4000 N:
4 m (13.12 ft) / RG58
MEGAWATT 4000 PL:
0 cm (0 in) / Not supplied
|
| Connector: |
MEGAWATT 3000 N:
Not supplied
MEGAWATT 3000 PL:
UHF-male (PL-259)
MEGAWATT 4000 N:
Not supplied
MEGAWATT 4000 PL:
UHF-male (PL-259)
|
Mechanical Data: |
|
|---|---|
| Materials: | Copper, Brass, Stainless Steel 17/7 PH, Nylon |
| Height (approx): |
MEGAWATT 3000 N:
1740 mm / 5.71 ft
MEGAWATT 3000 PL:
1740 mm / 5.71 ft
MEGAWATT 4000 N:
2030 mm / 6.66 ft
MEGAWATT 4000 PL:
2030 mm / 6.66 ft
|
| Weight (approx): | 480 gr / 1.06 lb |
| Mounting type: |
MEGAWATT 3000 N:
Thru-Hole
MEGAWATT 3000 PL:
On-Connector
MEGAWATT 4000 N:
Thru-Hole
MEGAWATT 4000 PL:
On-Connector
|
