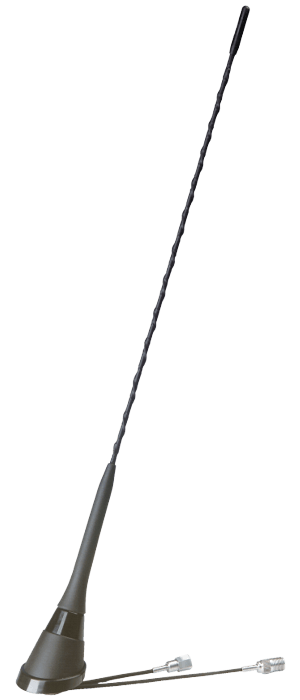

CELLFLEX

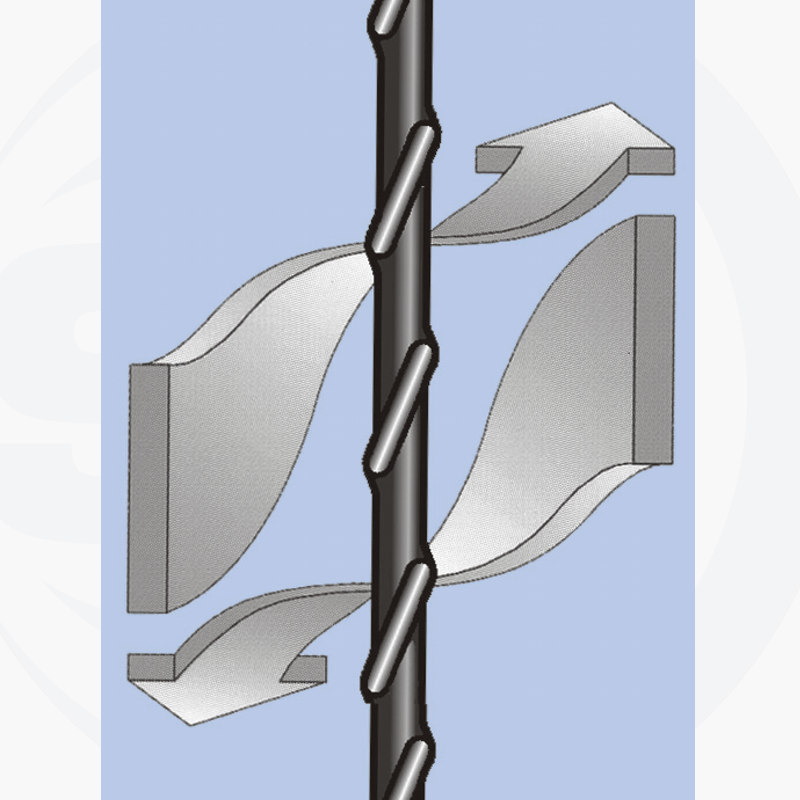

Antinoise Whip
Product Number: |
|
|---|---|
| 2216115.00 | CELLFLEX AM-FM / 900 / 1800 |
| 2216715.00 | CELLFLEX 79.5/442/900 |
Electrical Data: |
|
|---|---|
| Type: | 1/4 λ |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: |
CELLFLEX AM-FM / 900 / 1800:
0.15-1.6 & 87.5-108 & 870-960 & 1710-1880 MHz No tuning required
CELLFLEX 79.5/442/900:
78.5–80.5 & 442–442.5 & 880-960 MHz No tuning required
|
| Systems: | GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, AM, FM |
| Gain: | 0 dB ref. to a λ/4 whip |
| Max Power: |
CELLFLEX AM-FM / 900 / 1800:
20 W (CW)
CELLFLEX 79.5/442/900:
10W (CW)
|
Mechanical Data: |
|
|---|---|
| Materials: | Copper, Chromed brass, Nylon, Zamak |
| Height (approx): | 450 mm / 1.48 ft |
| Weight (approx): | 100 gr / 0.22 lb |
| Mounting type: | Thru-Hole |
