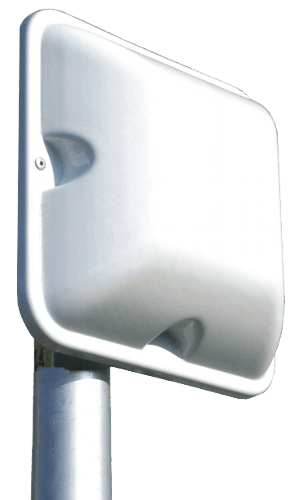

Product Number:
2110103.00	SPB-1.7÷2.5-10

Electrical Data:
Type:	Panel
Radiation:	Directional
Polarization:	Linear vertical
Frequency range:	1700-2500 MHz No tuning required
Systems:	GSM-1800, 3G-UMTS, WiFi-2.4GHz, DECT
Gain:	7.9 dBd – 10 dBi
Max Power:	20 W (CW)
Grounding protection:	DC-Ground
Cable lenght / type:	30 cm (11.81 in) / RG58
Connector:	SMA-male, Other type on request

Mechanical Data:
Materials:	Aluminium, Thermoplastic UV stabilized, PCB
Dimensions (approx):	170 x 170 x 50 mm / 0.56 x 0.56 x 0.16 ft
Weight (approx):	650 gr / 1.43 lb

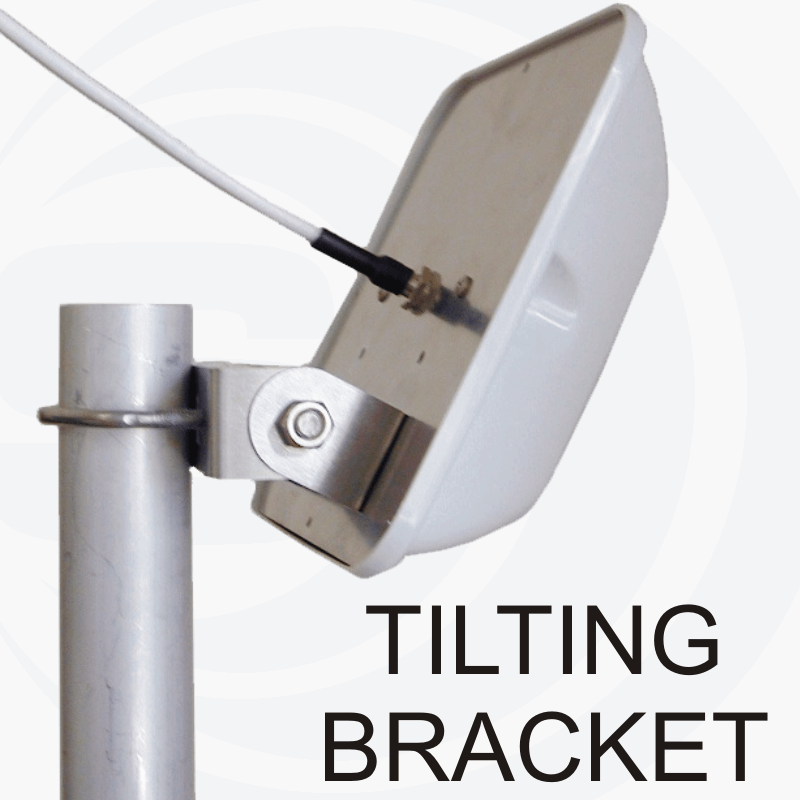

Mounting type:	On-Mast
