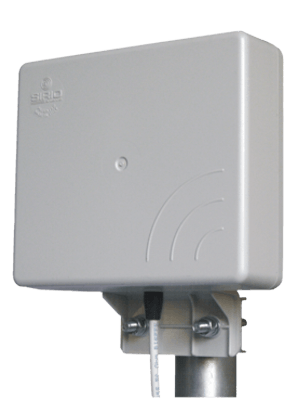

SMP 5G

Compact Panel - Full 5G LTE band

NEW PRODUCT

Product Number:
2112203.00 SMP 5G RF/30CM/SMA-M
2112203/5SMA SMP 5G RF/5M/SMA-M
Electrical Data:
Type: Mini panel
Radiation: Directional
Polarization: Linear vertical
Frequency range: 698-960 MHz & 1710-3800 MHz No tuning required
Systems: GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, 5G (3.4-3.8GHz), 5G, ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz, WiFi-2.4GHz
Gain: 4÷6 dBi @ 698-960 MHz
9÷10 dBi @ 1710-2170 MHz
11÷12 dBi @ 2300-2700 MHz
11÷12 dBi @ 3300-3800 MHz
Max Power: 35 Watts (CW) @ 698-960 MHZ
35 Watts (CW) @ 1710-2170 MHz
25 Watts (CW) @ 2300-2700 MHz
20 Watts (CW) @ 3300-3800 MHz
Cable lenght / type:
SMP 5G RF/30CM/SMA-M:
30 cm (11.81 in) / Low loss
SMP 5G RF/5M/SMA-M:
5 m (16.4 ft) / Low loss
Connector: SMA-male, Other type on request
Mechanical Data:
Materials: Galvanized steel, Thermoplastic UV stabilized, PCB
Dimensions (approx): 154 x 134 x 46 mm / 0.51 x 0.44 x 0.15 ft
Weight (approx): 400 gr / 0.88 lb
Mounting type: On-Mast, On-Wall
Suitable Accessories:
Tilting bracket for SMP series
