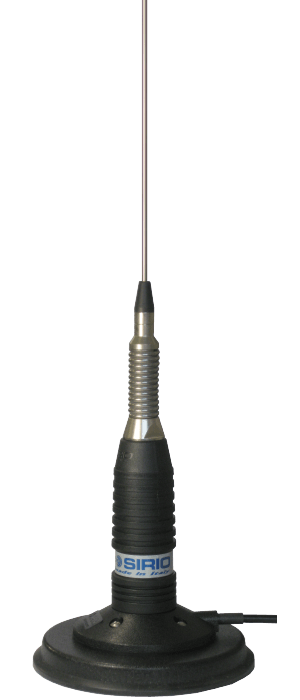

ML 145 MAG
Product Number:

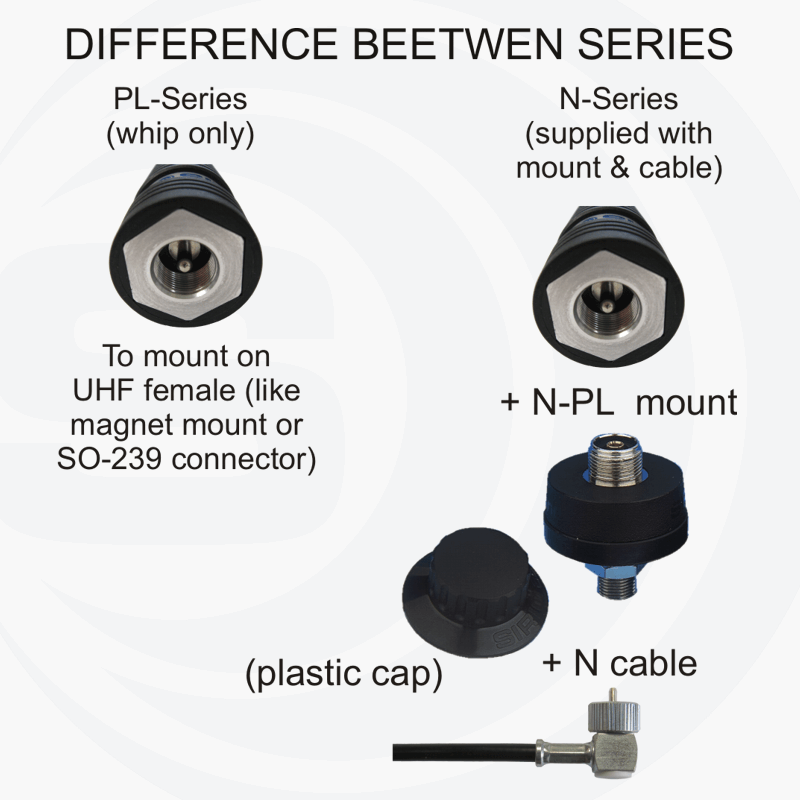

| P/N: 2201805.63 | ML 145 MAG
Included: Magnetic Mount: PM 125 PL (P/N:2502602.05) |
| P/N: 2201805.05 | ML 145 PL |
| P/N: 2201805.23 | ML145 N
Included: Hole mount: N-PL (P/N:2500502.05) Cable: 4m/13ft Cable for N or N-PL mounts (P/N:2505705.00) |
Electrical Data:
| Type: | Base loaded |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: | 27 ... 28.5 MHz Tunable |
| Systems: | CB 27MHz, 10m-HAM |
| Bandwidth: | ≥ 1.34MHz @ SWR ≤ 2 |
| Max Power: |
300 Watts (CW) continuous 900 Watts (CW) short time |
| Grounding protection: | DC-Ground |
| Cable lenght / type: |
|
| Connector: |
|
Mechanical Data:
| Materials: | Copper, Brass, Stainless Steel 17/7 PH, Nylon |
| Height (approx): | 1420 mm / 4.66 ft |
| Weight (approx): | 1250 gr / 2.76 lb |
| Mounting type: |
|
Suitable Accessories:
