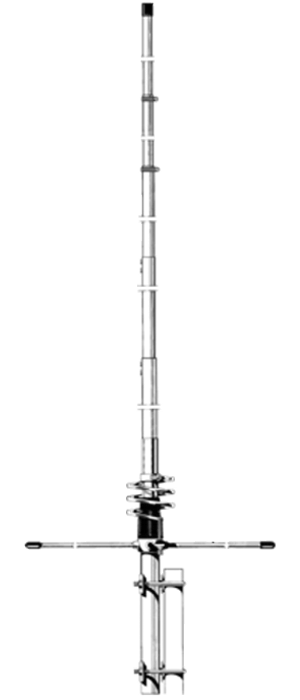

TORNADO series 36…60 MHz
Product Number: |
|
|---|---|
| 2108601.00 | TORNADO 36-42 |
| 2107801.00 | TORNADO 42-50 |
| 2108901.00 | TORNADO 50-60 |
Electrical Data: |
|
|---|---|
| Type: | 5/8 λ Ground plane |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: |
TORNADO 36-42:
36 … 42 MHz Tunable
TORNADO 42-50:
42 … 50 MHz Tunable
TORNADO 50-60:
50 … 60 MHz Tunable
|
| Systems: | 6m-HAM, AM |
| Gain: | 1.2 dBd – 3.35 dBi |
| Bandwidth: |
TORNADO 36-42:
≥ 2.3MHz @ SWR ≤ 2
TORNADO 42-50:
≥ 2.7MHz @ SWR ≤ 2
TORNADO 50-60:
≥ 3.1MHz @ SWR ≤ 2
|
| Max Power: | 1000 W (CW) |
| Connector: | UHF-female (SO-239) |
Mechanical Data: |
|
|---|---|
| Materials: | Aluminium, Brass, Nylon |
| Height (approx): |
TORNADO 36-42:
5650 mm / 18.54 ft
TORNADO 42-50:
5010 mm / 16.44 ft
TORNADO 50-60:
4100 mm / 13.45 ft
|
| Weight (approx): | 2100 gr / 4.63 lb |
| Mounting type: | On-Mast |
