MADE IN ITALY since 1972

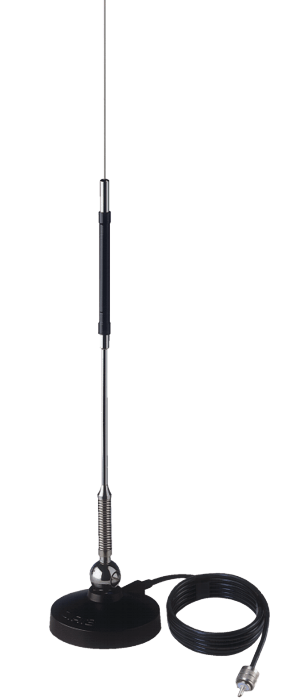

MINI MAG 27


Product Number:
P/N: 2204905.74 MINI MAG 27
Electrical Data:
Type: Central loaded
Radiation: Omnidirectional
Frequency range: 27 … 27.5 MHz Tunable
Systems: CB 27MHz
Bandwidth: ≥ 280KHz @ SWR ≤ 2
Max Power: 10 Watts (CW) continuous
50 Watts (CW) short time
Cable lenght / type: 3 m (9.84 ft) / RG58
Connector: UHF-male (PL-259)
Mechanical Data:
Materials: Copper, Brass, Stainless steel, Fiberglass
Height (approx): 630 mm / 2.07 ft
Weight (approx): 575 gr / 1.27 lb
Mounting type: Magnetic mount
