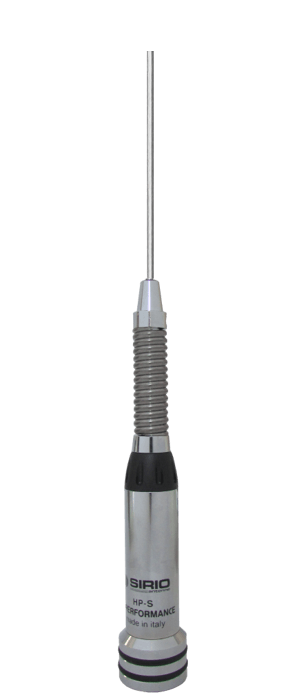

HP-S 136-174

NEW PRODUCT
Product Number:
P/N: 2213505.05 HP-S 136-174
Electrical Data:
Type: 5/8 λ
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 136 … 174 MHz Tunable
Systems: 2m-HAM, VHF Marine Band, ORBCOMM M2M, ISM-169MHz
Gain: 1.5 dB ref. to a λ/4 whip
Bandwidth: ≥ 6.7MHz @ SWR ≤ 2
Max Power: 200 W (CW)
Connector: UHF-female (SO-239)
Mechanical Data:
Materials: Chromed brass, Stainless Steel 17/7 PH, Thermoplastic UV stabilized, PTFE
Height (approx): 1480 mm / 4.86 ft
Weight (approx): 270 gr / 0.6 lb
Mounting type: On-Connector
Suitable Accessories:
Magnetic Mount: PM-100 PL (P/N:2502502.05)
Magnetic Mount: PM 125 PL (P/N:2502602.05)
Cable: HP-AC/U Angular Connector (P/N:2510805.00)
