Product Number:

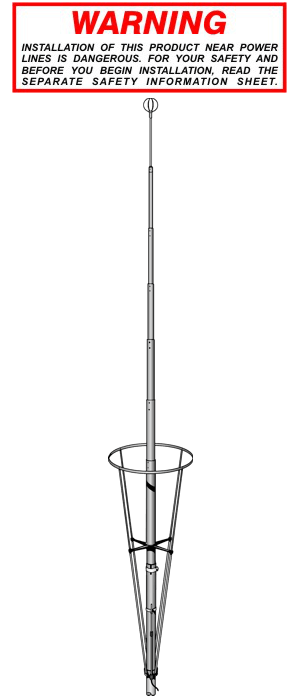

2100701.00	NEW VECTOR 4000

Electrical Data:
Type:	3/4 λ coaxial J-pole
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	27 ... 28.5 MHz Tunable
Systems:	10m-HAM
Gain:	2 dBd, 4.15 dBi
Bandwidth:	≥ 1.4MHz @ SWR ≤ 2
Max Power:	1000 Watts (CW) continuous 3000 Watts (CW) short time
Grounding protection:	All metal parts are DC-grounded, the inner conductor is coupled capacitively

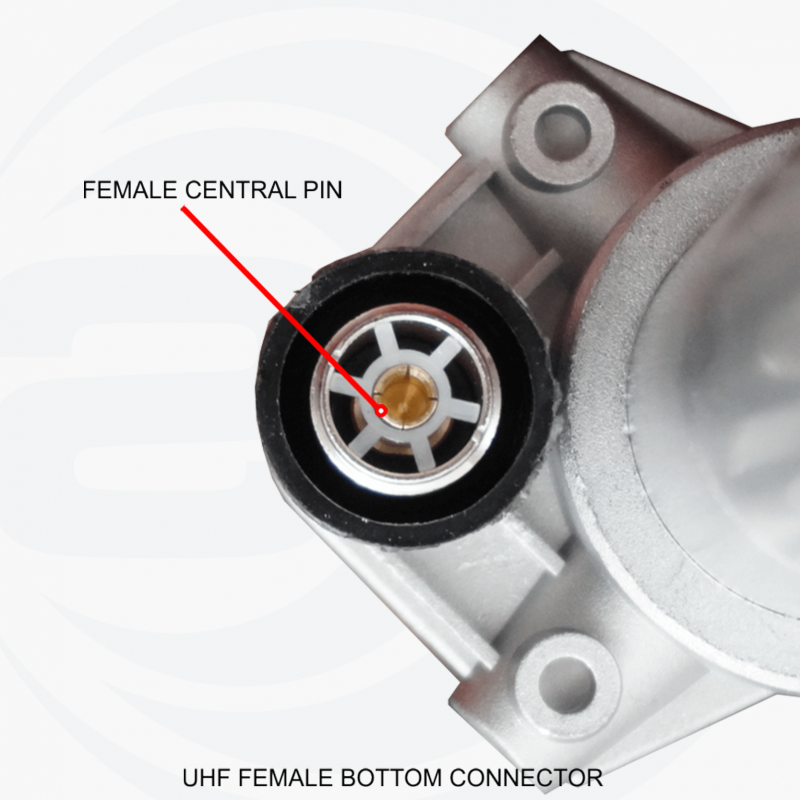

Connector:	UHF-female (SO-239)

Mechanical Data:
Materials:	Aluminium, Brass, Galvanized steel, Nylon
Height (approx):	8480 mm / 27.82 ft
Weight (approx):	4700 gr / 10.36 lb

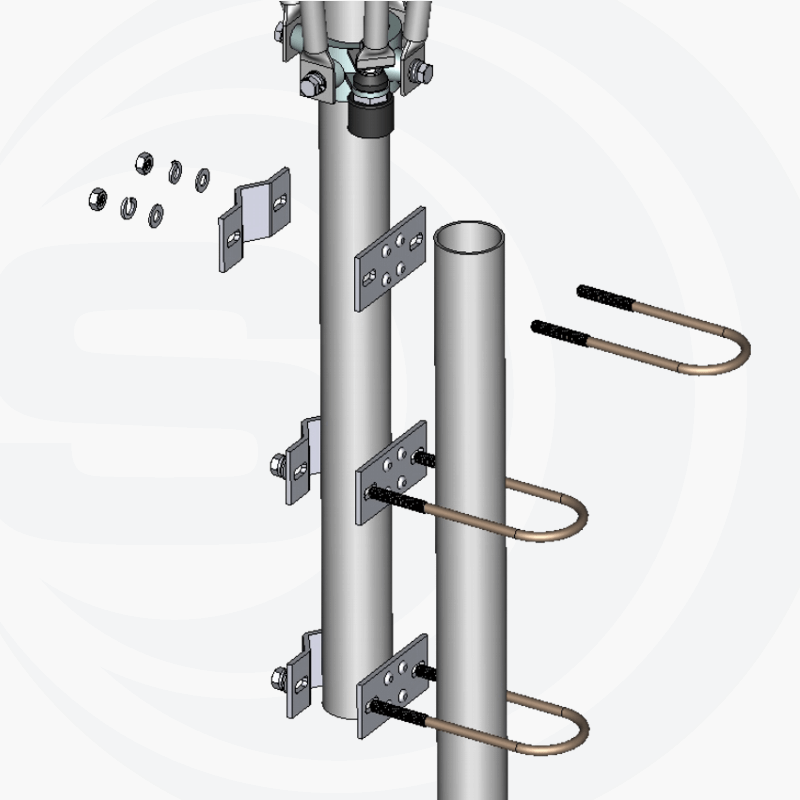

Mounting type:	On-Mast
