SMA 55-550
SMA 108-550

Product Number:
2209605.32 SMA 55-550 SL
Included:

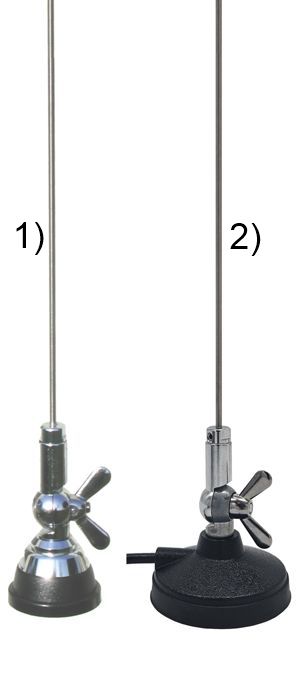

Hole mount: SL
Wing Bolt
2209605.28 SMA 55-550 S
Included:
Hole mount: S
Screw Bolt
2205305.32 SMA 108-550 SL
Included:
Hole mount: SL
Wing Bolt
2205305.28 SMA 108-550 S
Included:
Hole mount: S
Screw Bolt
Electrical Data:
Type: 1/4 λ
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range:
SMA 55-550 SL:
55 … 550 MHz Tunable
SMA 55-550 S:
55 … 300 MHz Tunable
SMA 108-550 SL:
108 … 550 MHz Tunable
SMA 108-550 S:
108 … 300 MHz Tunable
Systems: 2m-HAM, 1.25m-HAM, 70cm-HAM, VHF Airband, VHF Marine Band, VHF Low-band (66-88MHz), ORBCOMM M2M, AIS-162MHz, TETRA-350, TETRA, CDMA-450, LTE-450, FM, ISM-169MHz, VHF-260MHz
Gain: 0 dB ref. to a λ/4 whip
Max Power: 100 W (CW)
Cable lenght / type: 5 m (16.4 ft) / RG58
Connector: Not supplied
Mechanical Data:
Materials: Chromed brass, Stainless Steel 17/7 PH, Nylon
Height (approx):
SMA 55-550 SL:
1360 mm / 4.46 ft
SMA 55-550 S:
1360 mm / 4.46 ft
SMA 108-550 SL:
720 mm / 2.36 ft
SMA 108-550 S:
720 mm / 2.36 ft
Weight (approx): 400 gr / 0.88 lb
Mounting type: Thru-Hole
Suitable Accessories:
Magnetic Mount: PM-125 S (P/N:2502602.01)
