Product Number:

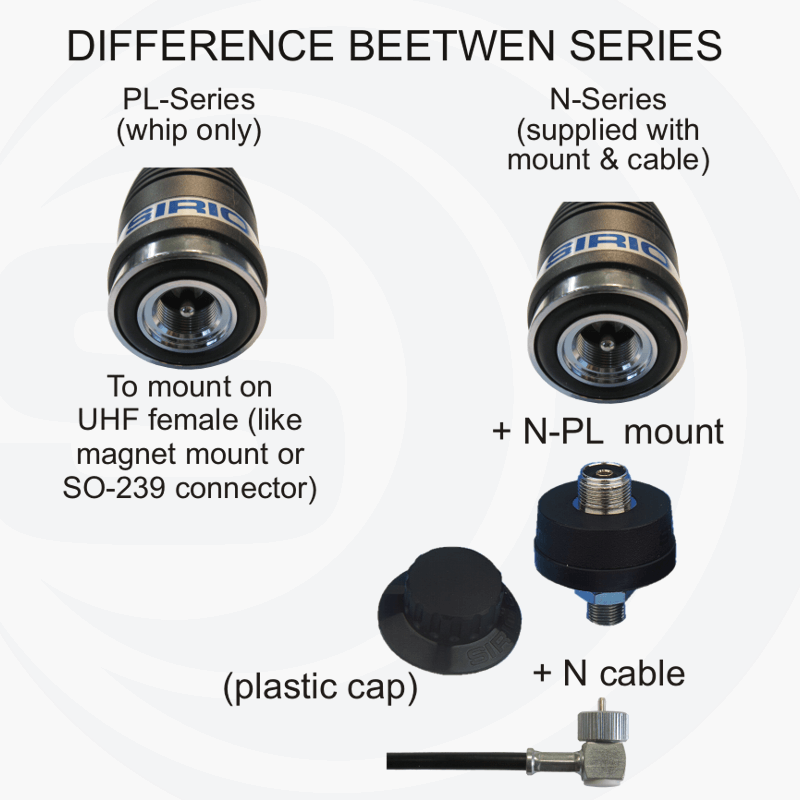

2202305.23	HI-POWER 3000 N Included: Hole mount: N-PL (P/N:2500502.05) Cable: 4m/13ft Cable for N or N-PL mounts (P/N:2505705.00)
2202305.05	HI-POWER 3000 PL
2202505.23	HI-POWER 4000 N Included: Hole mount: N-PL (P/N:2500502.05) Cable: 4m/13ft Cable for N or N-PL mounts (P/N:2505705.00)
2202505.05	HI-POWER 4000 PL

Electrical Data:
Type:	Base loaded
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	27 … 30 MHz Tunable
Systems:	CB 27MHz, 10m-HAM
Bandwidth:	HI-POWER 3000 N: ≥ 1.89MHz @ SWR ≤ 2 HI-POWER 3000 PL: ≥ 1.89MHz @ SWR ≤ 2 HI-POWER 4000 N: ≥ 2.58MHz @ SWR ≤ 2 HI-POWER 4000 PL: ≥ 2.58MHz @ SWR ≤ 2
Max Power:	HI-POWER 3000 N: 400 Watts (CW) continuous 1200 Watts (CW) short time HI-POWER 3000 PL: 400 Watts (CW) continuous 1200 Watts (CW) short time HI-POWER 4000 N: 600 Watts (CW) continuous 1800 Watts (CW) short time HI-POWER 4000 PL: 600 Watts (CW) continuous 1800 Watts (CW) short time
Grounding protection:	DC-Ground
Cable lenght / type:	HI-POWER 3000 N: 4 m (13.12 ft) / RG58 HI-POWER 3000 PL: 0 cm (0 in) / Not supplied HI-POWER 4000 N: 4 m (13.12 ft) / RG58 HI-POWER 4000 PL: 0 cm (0 in) / Not supplied
Connector:	HI-POWER 3000 N: Not supplied HI-POWER 3000 PL: UHF-male (PL-259) HI-POWER 4000 N: Not supplied HI-POWER 4000 PL: UHF-male (PL-259)

Mechanical Data:
Materials:	Copper, Brass, Stainless Steel 17/7 PH, Nylon
Height (approx):	HI-POWER 3000 N: 1740 mm / 5.71 ft HI-POWER 3000 PL: 1740 mm / 5.71 ft HI-POWER 4000 N: 2030 mm / 6.66 ft HI-POWER 4000 PL: 2030 mm / 6.66 ft
Weight (approx):	450 gr / 0.99 lb
Mounting type:	HI-POWER 3000 N: Thru-Hole HI-POWER 3000 PL: On-Connector HI-POWER 4000 N: Thru-Hole HI-POWER 4000 PL: On-Connector

Suitable Accessories:
Hole mount: NE-PL (P/N:2500602.05)
Magnetic Mount: MAG 145 PL (P/N:2502702.05)
Cable: SO-239 Angular connector w/cable (P/N:2506105.00)
Bracket: ABN-2 Trunk Mount (P/N:2504105.00)
Bracket: KF Gutter mount (P/N:2504205.00)
Bracket: Asp-1 Chrome (P/N:2504004.00)
Connector: UHF-male (PL-259) (P/N: 2505600.00)
