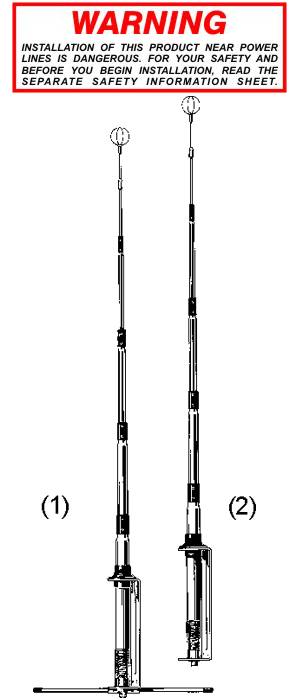

GPE 5/8
GPS 1/2

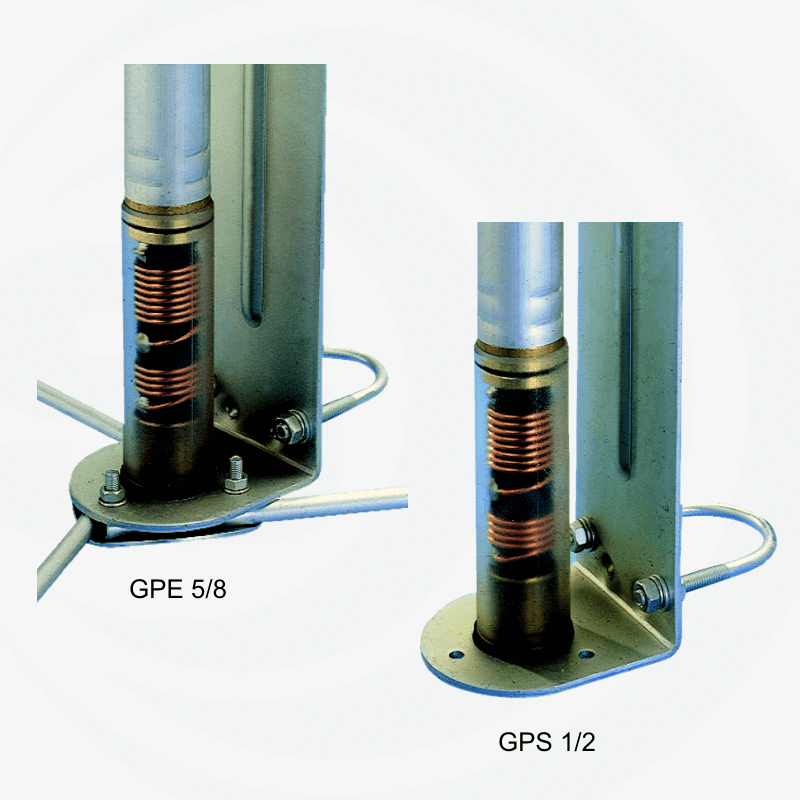

1) GPE 5/8
2) GPS 1/2
2) GPS 1/2
Product Number:
| P/N: 2100301.00 | GPE 5/8 |
| P/N: 2100401.00 | GPS 1/2 |
Electrical Data:
| Type: | GPE 5/8: 5/8 λ ground plane GPS 1/2: 1/2 λ |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |

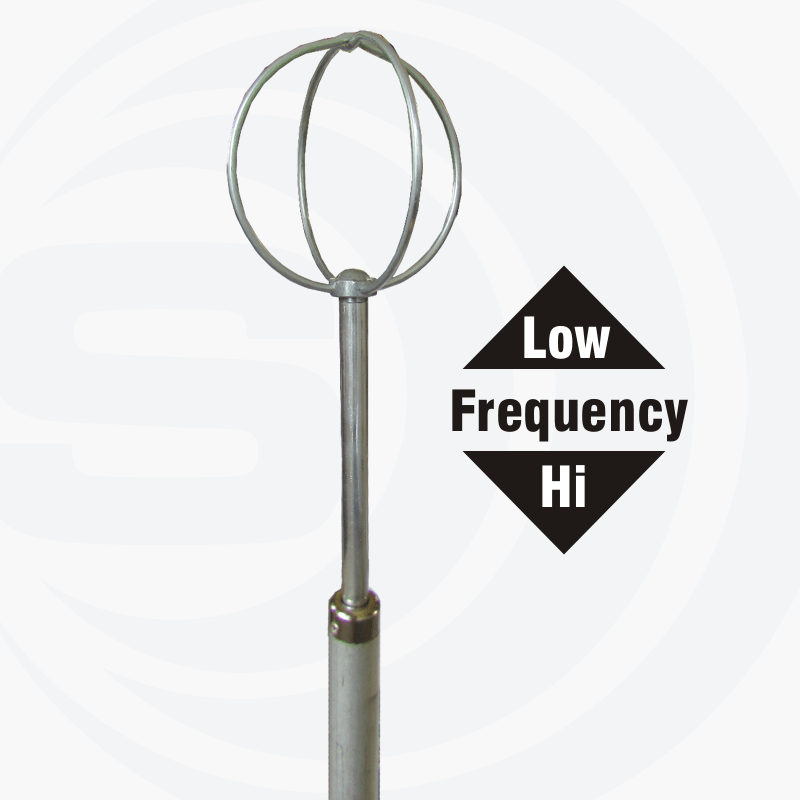

| Frequency range: | 26.4 ... 29.0 MHz Tunable |
| Systems: | 10m-HAM |
| Gain: | GPE 5/8: 1.2 dBd, 3.35 dBi GPS 1/2: 0 dBd, 2.15 dBi |
| Bandwidth: | ≥ 1.6MHz @ SWR ≤ 2 |
| Max Power: |
250 Watts (CW) continuous 750 Watts (CW) short time |
| Grounding protection: | DC-Ground |

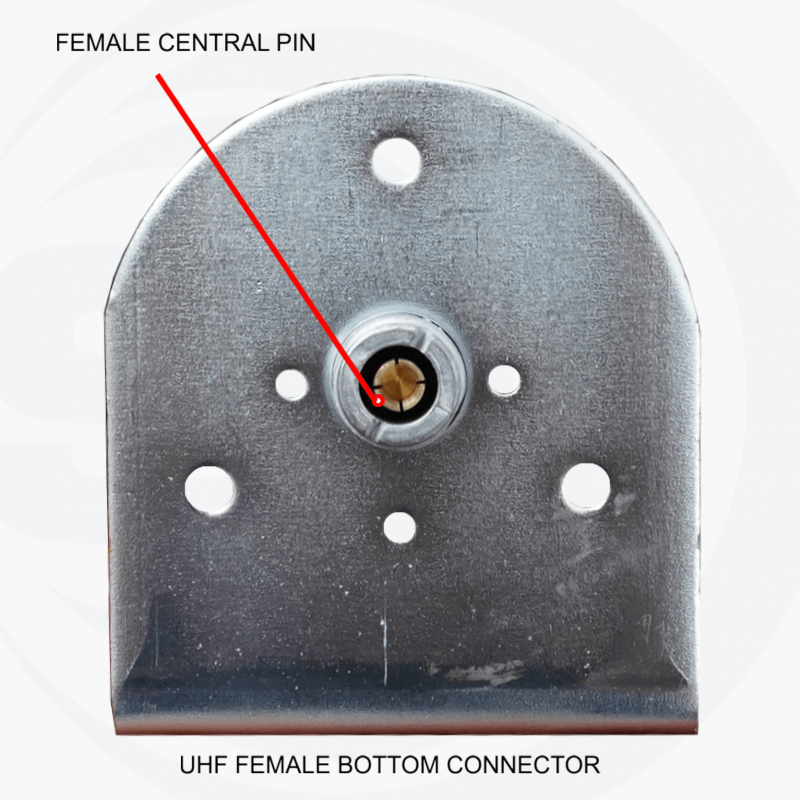

| Connector: | UHF-female (SO-239) |
Mechanical Data:
| Materials: | Aluminium, Copper, Galvanized steel, Nylon |
| Height (approx): | 5950 mm / 19.52 ft |
| Weight (approx): |
|
| Mounting type: | On-Mast |
