Product Number:

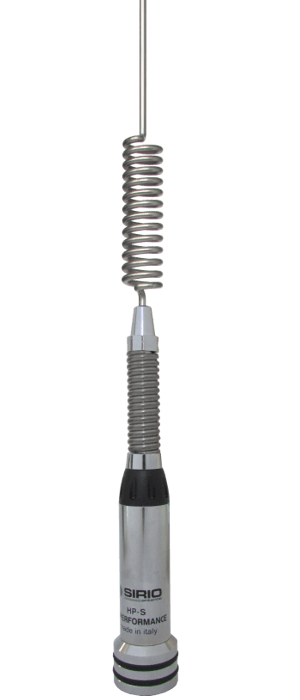

2213605.05	HP-S 380-400

Electrical Data:
Type:	1/4 λ + 1/2 λ
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	380-400 MHZ @ SWR ≤1.5 No tuning required
Systems:	TETRA
Gain:	2.8 dB ref. to a λ/4 whip
Max Power:	200 W (CW)
Grounding protection:	DC-Ground
Connector:	UHF-male (PL-259)

Mechanical Data:
Materials:	Chromed brass, Stainless Steel 17/7 PH, Nylon
Height (approx):	620 mm / 2.03 ft
Weight (approx):	280 gr / 0.62 lb
Mounting type:	On-Connector

Suitable Accessories:
Magnetic Mount: PM-100 PL (P/N:2502502.05)
Magnetic Mount: PM 125 PL (P/N:2502602.05)
Cable: HP-AC/U Angular Connector (P/N:2510805.00)
