Product Number:

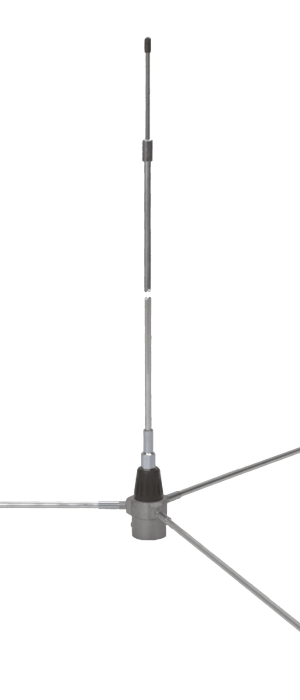

2101801.00	GP 3-E

Electrical Data:
Type:	5/8 λ ground plane
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	135…175 MHz Tunable
Systems:	2m-HAM, VHF Marine Band, ORBCOMM M2M, AIS-162MHz, ISM-169MHz
Gain:	1.5 dBd – 3.65 dBi
Max Power:	200W (CW)
Grounding protection:	DC-Ground

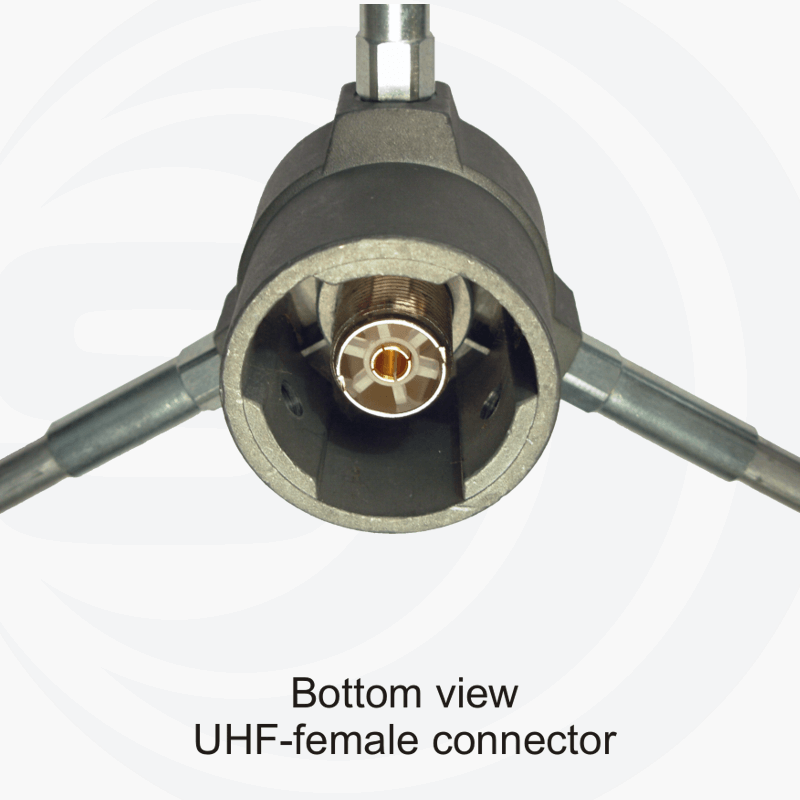

Connector:	UHF-female (SO-239)

Mechanical Data:
Materials:	Aluminium, Copper, Nylon
Height (approx):	1480 mm / 4.86 ft
Weight (approx):	570 gr / 1.26 lb
Mounting type:	On-Mast

Suitable Accessories:
Bracket: FT-3
