Product Number:

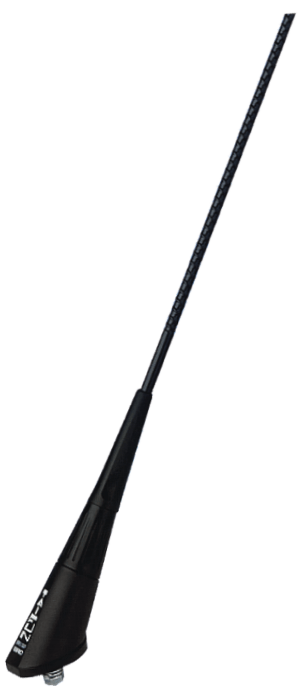

2204715.00	TAIFUN 27

Electrical Data:
Type:	Base loaded
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	27 … 27.5 MHz Tunable
Systems:	CB 27MHz
Bandwidth:	≥ 490KHz @ SWR ≤ 2
Max Power:	10 Watts (CW) continuous 30 Watts (CW) short time
Cable lenght / type:	4 m (13.12 ft) / RG58
Connector:	Not supplied

Mechanical Data:
Materials:	Copper, Brass, Fiberglass, Nylon
Height (approx):	530 mm / 1.74 ft
Weight (approx):	340 gr / 0.75 lb
Mounting type:	Thru-Hole
