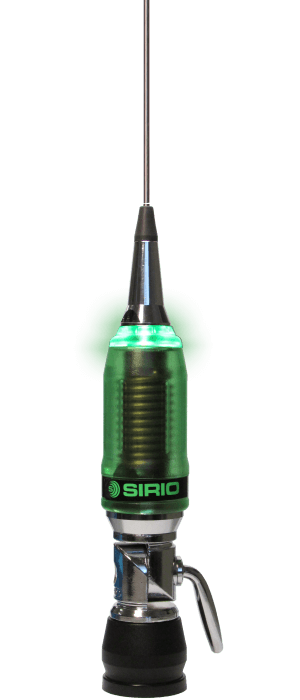

P 5000 LED

Unique LED PCB That Light Up When Transmit

Product Number:
P/N: 2218505.50/LED P5000 LED
Cable: 4m/13ft Cable for NE-PL, Turbo and Performer (P/N:2505905.00)
Mount: PERFORMER 800, 2000 & 5000 LED
P/N: 2218505.51/LED P5000 PL LED
Mount: PERFORMER 800, 2000 & 5000 LED PL
Electrical Data:
Type: Base loaded
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 27 … 30 MHz Tunable
Systems: CB 27MHz, 10m-HAM
Bandwidth: ≥ 2MHz @ SWR ≤ 2
Max Power: 1500 Watts (CW) continuous
5000 Watts (CW) Duty Cicle 5′ on – 5′ off
Grounding protection: DC-Ground
Cable lenght / type:
P5000 LED:
4 m (13.12 ft) / RG58
P5000 PL LED:
Not supplied
P5000 LED:
Not supplied
P5000 PL LED:
UHF-male (PL-259)
Mechanical Data:

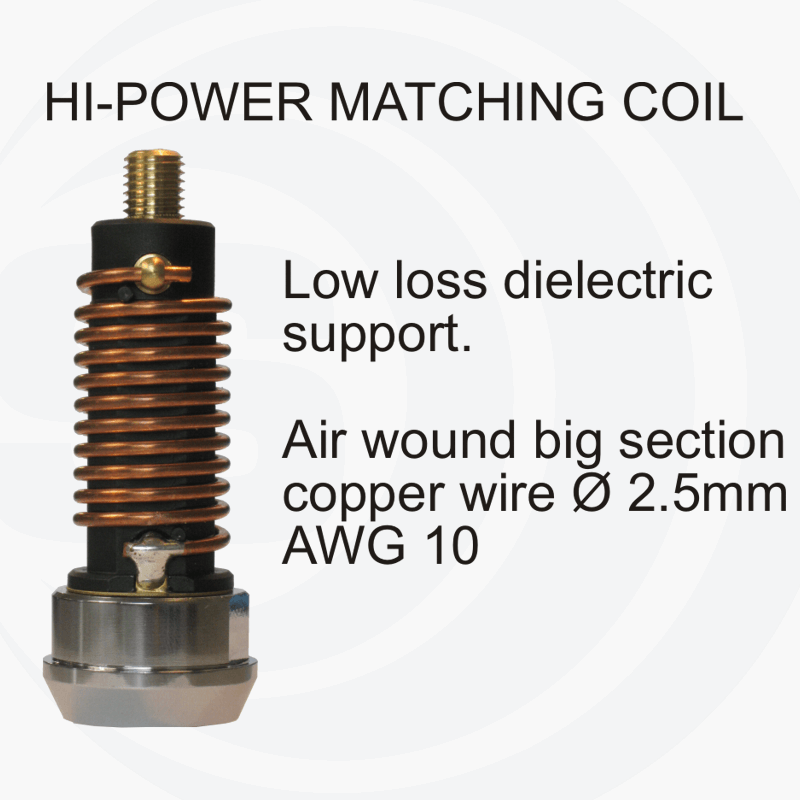

Materials: Copper, Chromed brass, Stainless Steel 17/7 PH, Thermoplastic UV stabilized
Height (approx): 1965 mm / 6.45 ft
Weight (approx): 650 gr / 1.43 lb

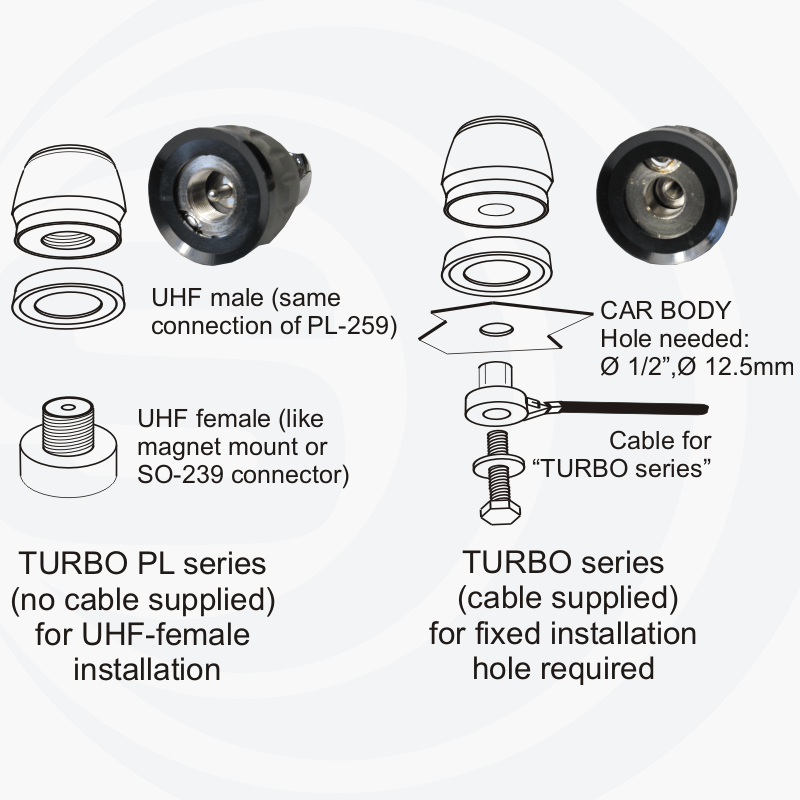

Mounting type:
P5000 LED:
P5000 PL LED:
Suitable Accessories:
Magnetic Mount: MAG 145 PL (P/N:2502702.05)
Cable: SO-239 Angular connector w/cable (P/N:2506105.00)
Cable: 4m/13ft RG303 HI-POWER Cable for NE-PL, Turbo and Performer (P/N:2509605.00)
Bracket: ABN-2 Trunk Mount (P/N:2504105.00)
Bracket: KF Gutter mount (P/N:2504205.00)
Bracket: Asp-1 Chrome (P/N:2504004.00)
Connector: UHF-male (PL-259) (P/N: 2505600.00)
