Product Number:
2105101.00	SY-3

Electrical Data:

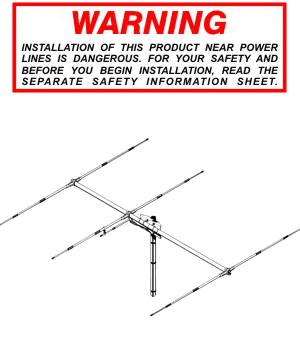

Type:	3 elements Yagi
Radiation:	Directional
Polarization:	Linear Horizontal
Frequency range:	26.5 ... 30 MHz Tunable
Systems:	10m-HAM
Gain:	8.5 dBd, 10.65 dBi
Bandwidth:	≥ 1.2MHz @ SWR ≤ 2
Max Power:	1000 Watts (CW) continuous 3000 Watts (CW) short time
Grounding protection:	All metal parts are DC-grounded, the inner conductor is coupled capacitively
Connector:	UHF-female (SO-239)

Mechanical Data:
Materials:	Aluminium, Galvanized steel, Zamak
Dimensions (approx):	5942 x 2710 x 100 mm / 19.49 x 8.89 x 0.33 ft
Weight (approx):	4700 gr / 10.36 lb

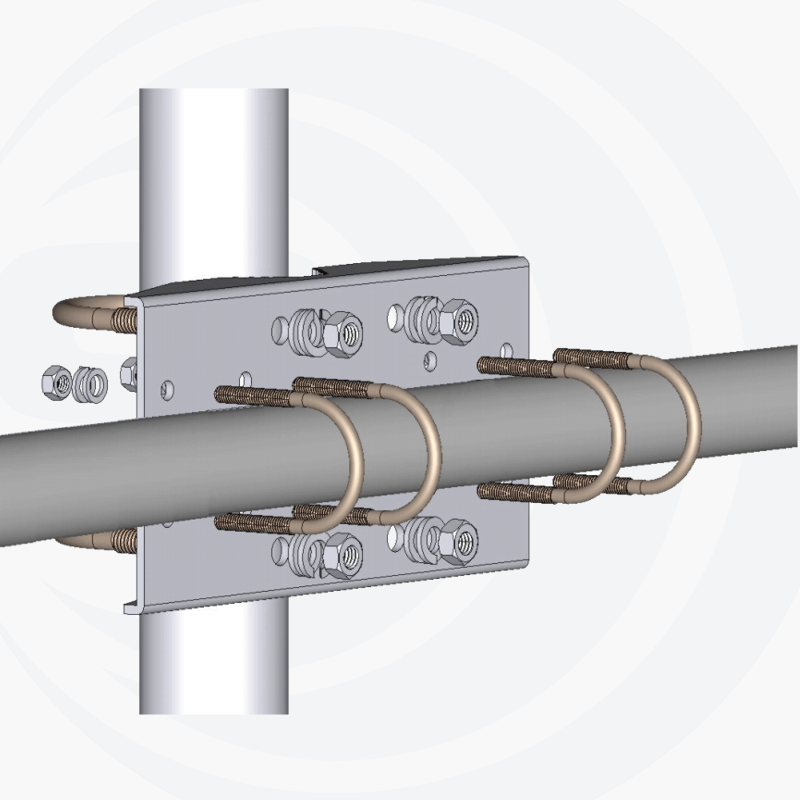

Mounting type:	On-Mast
