Product Number:
2105901/68	SY 68-2
2105901/78	SY 78-2

Electrical Data:

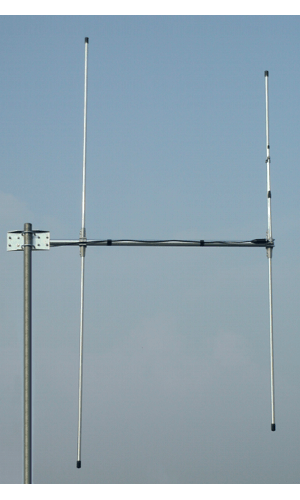

Type:	2 elements Yagi
Radiation:	Directional
Polarization:	Linear Vertical or Horizontal
Frequency range:	SY 68-2: 68-78 MHz No tuning required SY 78-2: 78-88 MHz No tuning required
Systems:	VHF Low-band (66-88MHz)
Gain:	2.85 dBd – 5 dBi
Max Power:	350 W (CW)
Grounding protection:	All metal parts are DC-grounded, the inner conductor is coupled capacitively
Connector:	UHF-female (SO-239)

Mechanical Data:
Materials:	Aluminium, Chromed brass, Galvanized steel, Zamak
Dimensions (approx):	SY 68-2: 2235 x 1250 mm / 7.33 x 4.1 ft SY 78-2: 1895 x 1250 mm / 6.22 x 4.1 ft
Weight (approx):	SY 68-2: 2695 gr / 5.94 lb SY 78-2: 2610 gr / 5.75 lb
Mounting type:	On-Mast
