Product Number:

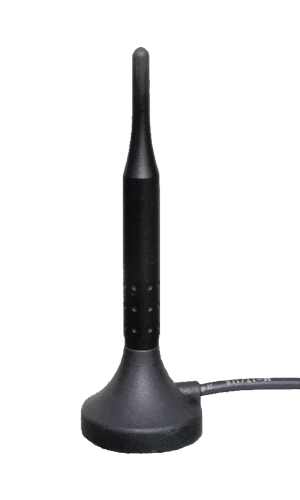

2217106/3FME	MICROMAG LTE
2217106/3SMA	MICROMAG LTE

Electrical Data:
Type:	1/4 λ
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	698-960 MHz & 1710-2700MHz No tuning required
Systems:	GSM-R, GSM-900, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz, WiFi-2.4GHz
Gain:	0 dB ref. to a λ/4 whip
Max Power:	20 W (CW)
Cable lenght / type:	3 m (9.84 ft) / RG174
Connector:	MICROMAG LTE: FME-female MICROMAG LTE: SMA-male

Mechanical Data:
Materials:	Chromed brass, Stainless steel, Nylon
Height (approx):	90 mm / 0.3 ft
Weight (approx):	80 gr / 0.18 lb
Mounting type:	Magnetic mount
