MADE IN ITALY since 1972

SLP 4G-LTE

Wide Band, Patented
NEW PRODUCT
Product Number:
P/N: 2112001.00 SLP 4G-LTE
Electrical Data:
Type: Log periodic
Radiation: Directional
Polarization: Linear Vertical or Horizontal
Frequency range: 698-2700 MHz No tuning required
Systems: GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz, WiFi-2.4GHz, DECT
Gain: 9÷11 dBi
Max Power: 10 W (CW)
Grounding protection: DC-Ground
Cable lenght / type: 50 cm (19.69 in) / Low loss
Connector: SMA-male
Mechanical Data:
Materials: Aluminium, Galvanized steel, Thermoplastic UV stabilized
Dimensions (approx): 850 x 290 x 50 mm / 2.79 x 0.95 x 0.16 ft
Weight (approx): 830 gr / 1.83 lb
Mounting type: On-Mast
Suitable Accessories:

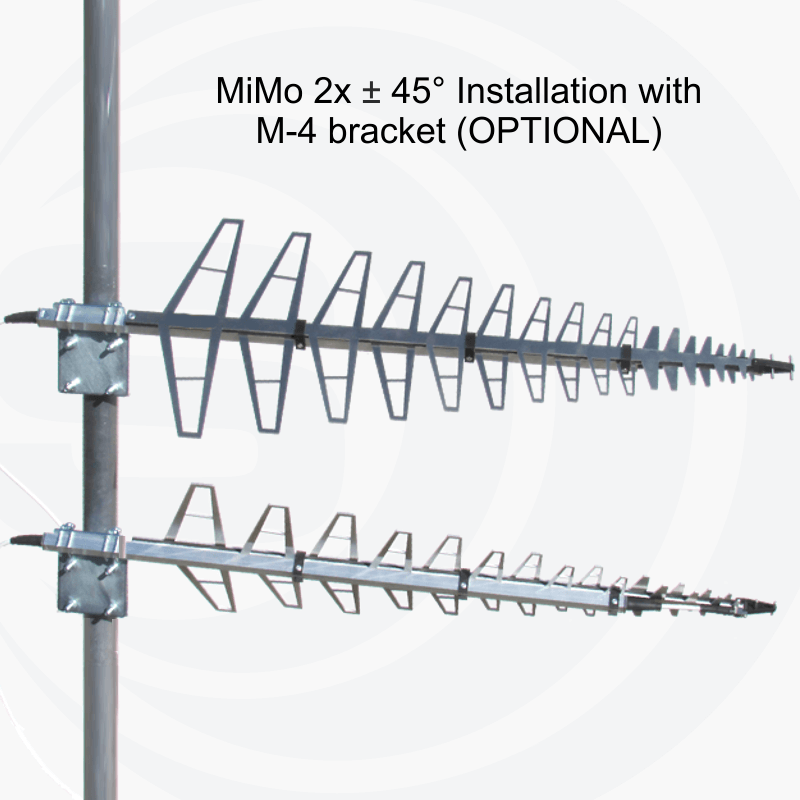

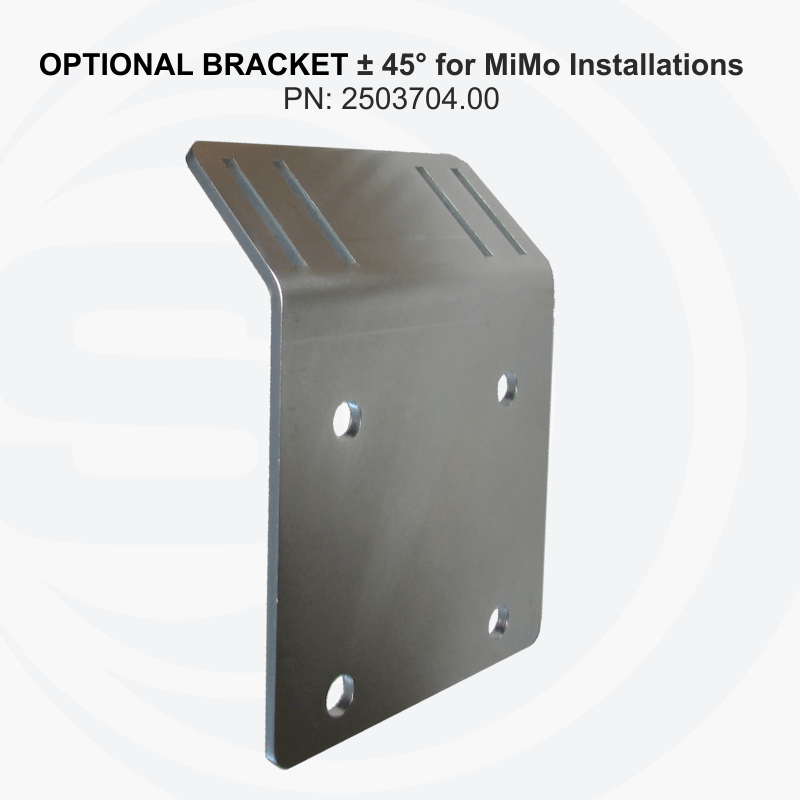

Bracket: M-4 (P/N:2503704.00)
