MADE IN ITALY since 1972

CELLULAR 33

Very short whip

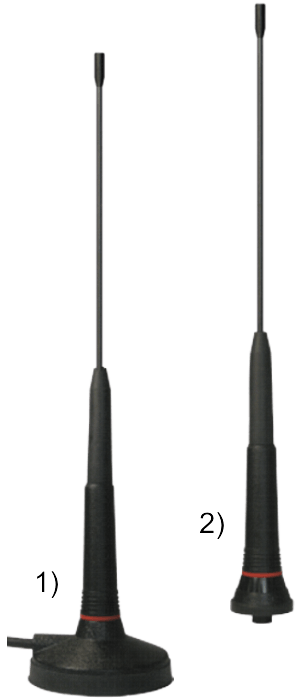

CELLULAR_33_S_CELLULAR_33_S_MAG

1) CELLULAR 33 MAG
2) CELLULAR 33

DISCONTINUED

Product Number:

P/N: 2206427.37	CELLULAR 33
P/N: 2206428.72	CELLULAR 33 MAG
P/N: 2206428.38	CELLULAR 33 S
P/N: 2206428.73	CELLULAR 33 S MAG

Electrical Data:

Type:	Base loaded
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	27 … 27.5 MHz Tunable
Systems:	CB 27MHz
Bandwidth:	≥ 650KHz @ SWR ≤ 2
Max Power:	10 Watts (CW) continuous 30 Watts (CW) short time
Cable lenght / type:	CELLULAR 33: 4 m (13.12 ft) / RG58 CELLULAR 33 MAG: 3 m (9.84 ft) / RG58 CELLULAR 33 S: 4 m (13.12 ft) / RG58 CELLULAR 33 S MAG: 4.5 m (14.76 ft) / RG58
Connector:	Not supplied

Mechanical Data:

Materials:	Copper, Brass, Thermoplastic UV stabilized
Height (approx):	CELLULAR 33: 325 mm / 1.07 ft CELLULAR 33 MAG: 350 mm / 1.15 ft CELLULAR 33 S: 325 mm / 1.07 ft CELLULAR 33 S MAG: 350 mm / 1.15 ft
Weight (approx):	CELLULAR 33: 80 gr / 0.18 lb CELLULAR 33 MAG: 440 gr / 0.97 lb CELLULAR 33 S: 80 gr / 0.18 lb CELLULAR 33 S MAG: 440 gr / 0.97 lb
Mounting type:	CELLULAR 33: Thru-Hole CELLULAR 33 MAG: Magnetic mount CELLULAR 33 S: Thru-Hole CELLULAR 33 S MAG: Magnetic mount

Suitable Accessories:

Connector: UHF-male (PL-259) (P/N: 2505600.00)
