SCO-1.09-5
SCO-1.09-5 GPS
NEW PRODUCT
Product Number:
| P/N: 2132220.00 | SCO-1.09-5 |
| P/N: 2132320.00 | SCO-1.09-5 GPS |
Electrical Data:
| Type: | 3×1/2 λ colinear |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: | 1090 MHz No tuning required |
| Systems: | ADS-B-1090MHz |
| Gain: | SCO-1.09-5: 2.65 dBd – 4.8 dBi SCO-1.09-5 GPS (ADS-B): 1.95 dBd– 4.1 dBi SCO-1.09-5 GPS (GPS LNA): +18 dB typical |
| Grounding protection: | DC-Ground |

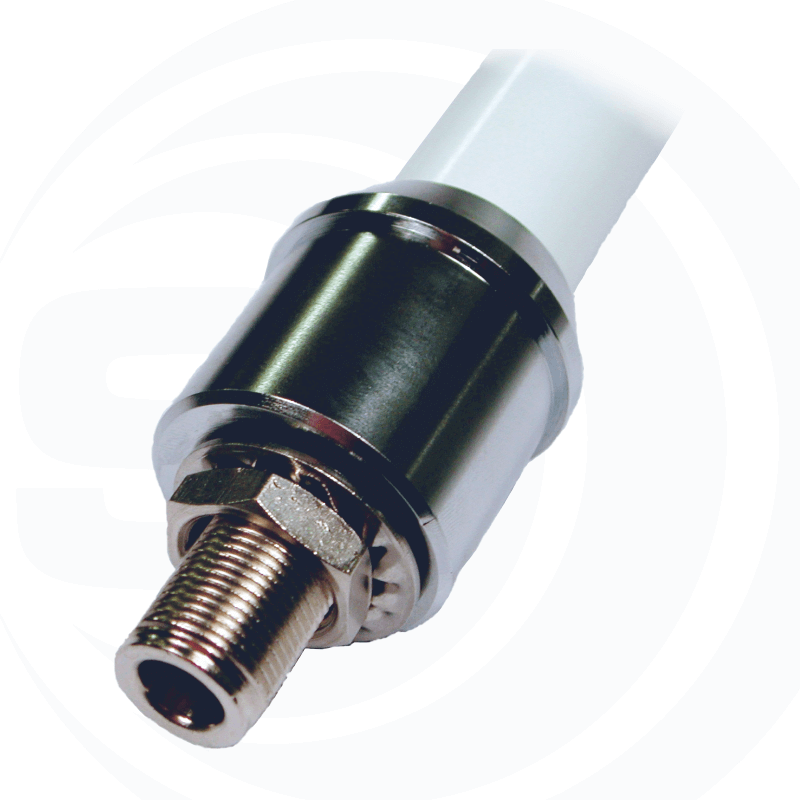

| Connector: | N-female |
| Required supply | SCO-1.09-5 GPS: 3Vcc (+V on connector central pin) |
| Current consumption | SCO-1.09-5 GPS: 10mA @ 3Vcc |
Mechanical Data:
| Materials: | Chromed brass, Nickel plated brass, Fiberglass |
| Height (approx): |
|
| Weight (approx): |
|

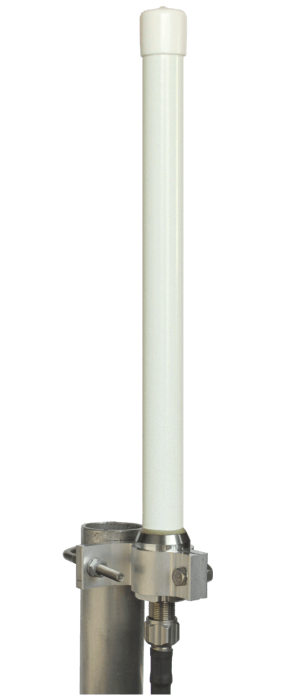

| Mounting type: | On-Mast, On-Wall |
