Features:
Now available with new MAG-60-S magnetic mount

Product Number:

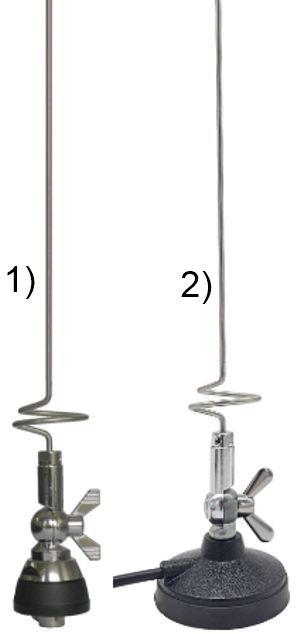

2205405.32	SU 3 5/8 350-550 Included: Hole mount: SL Wing Bolt
2205405.72DV	SU 3 5/8 350-550 MAG-60-S Included: Screw Bolt

Electrical Data:
Type:	5/8 λ
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	SU 3 5/8 350-550: 350 … 550 MHz Tunable SU 3 5/8 350-550 MAG-60-S: 350 … 550 MHz Tunable
Systems:	70cm-HAM, TETRA-350, TETRA, CDMA-450, LTE-450, ISM/SIGFOX/LoRa 433MHz
Gain:	2 dB ref. to a λ/4 whip
Bandwidth:	≥ 20MHz @ SWR ≤ 2
Max Power:	100 W (CW)
Cable lenght / type:	SU 3 5/8 350-550: 5 m (16.4 ft) / RG58 SU 3 5/8 350-550 MAG-60-S: 3 m (9.84 ft) / RG58
Connector:	SU 3 5/8 350-550: Not supplied SU 3 5/8 350-550 MAG-60-S: UHF-male (PL-259)

Mechanical Data:
Materials:	Chromed brass, Stainless Steel 17/7 PH, Nylon
Height (approx):	SU 3 5/8 350-550: 607 mm / 1.99 ft SU 3 5/8 350-550 MAG-60-S: 610 mm / 2 ft
Weight (approx):	SU 3 5/8 350-550: 350 gr / 0.77 lb SU 3 5/8 350-550 MAG-60-S: 460 gr / 1.01 lb
Mounting type:	SU 3 5/8 350-550: Thru-Hole SU 3 5/8 350-550 MAG-60-S: Magnetic mount
