Product Number:

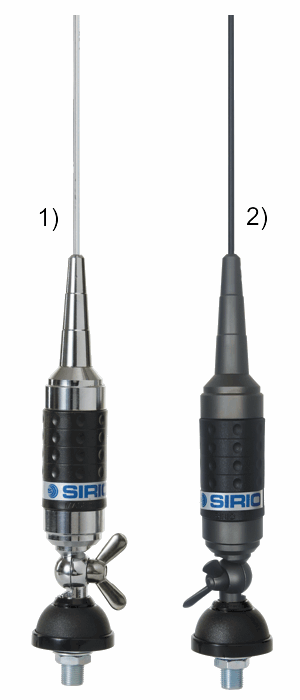

2204106.02	CARBONIUM 27 Limited Edition Included: Hole mount: N Black (P/N:2500102.02) Cable: 4m/13ft Cable for N or N-PL mounts (P/N:2505705.00) Screw Bolt
2204205.01	SUPER CARBONIUM 27 Included: Hole mount: N Chrome (P/N:2500102.01) Cable: 4m/13ft Cable for N or N-PL mounts (P/N:2505705.00) Screw Bolt

Electrical Data:
Type:	Base loaded
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	27 … 28.5 MHz Tunable
Systems:	CB 27MHz, 10m-HAM
Bandwidth:	CARBONIUM 27 Limited Edition: ≥ 1.62MHz @ SWR ≤ 2 SUPER CARBONIUM 27: ≥ 1.85MHz @ SWR ≤ 2
Max Power:	CARBONIUM 27 Limited Edition: 25 Watts (CW) continuous 150 Watts (CW) short time SUPER CARBONIUM 27: 35 Watts (CW) continuous 250 Watts (CW) short time
Cable lenght / type:	4 m (13.12 ft) / RG58
Connector:	Not supplied

Mechanical Data:
Materials:	Copper, Brass, Stainless Steel 17/7 PH, Nylon
Height (approx):	CARBONIUM 27 Limited Edition: 1130 mm / 3.71 ft SUPER CARBONIUM 27: 1400 mm / 4.59 ft
Weight (approx):	480 gr / 1.06 lb
Mounting type:	Thru-Hole

Suitable Accessories:
Hole mount: NE Chrome (P/N:2500202.01)
Hole mount: NE Black (P/N:2500202.02)
Bracket: ABN-2 Trunk Mount (P/N:2504105.00)
Bracket: KF Gutter mount (P/N:2504205.00)
Bracket: Asp-1 Chrome (P/N:2504004.00)
Connector: UHF-male (PL-259) (P/N: 2505600.00)
