FLEX-LOG series

FLEX-LOG_series

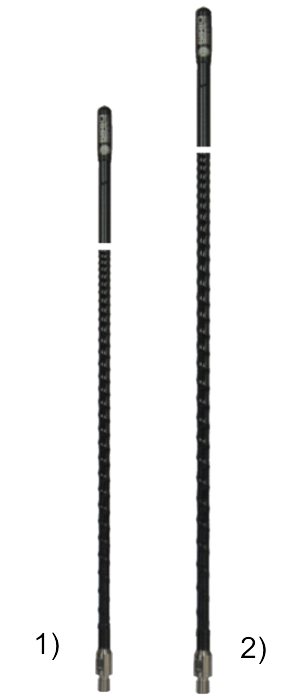

1) FLEX-LOG 3
2) FLEX-LOG 4
Product Number:
2407915.03 FLEX-LOG 3
2408015.03 FLEX-LOG 4
Electrical Data:
Type: Logarithmic loaded
Radiation: Omnidirectional
Polarization: Linear vertical

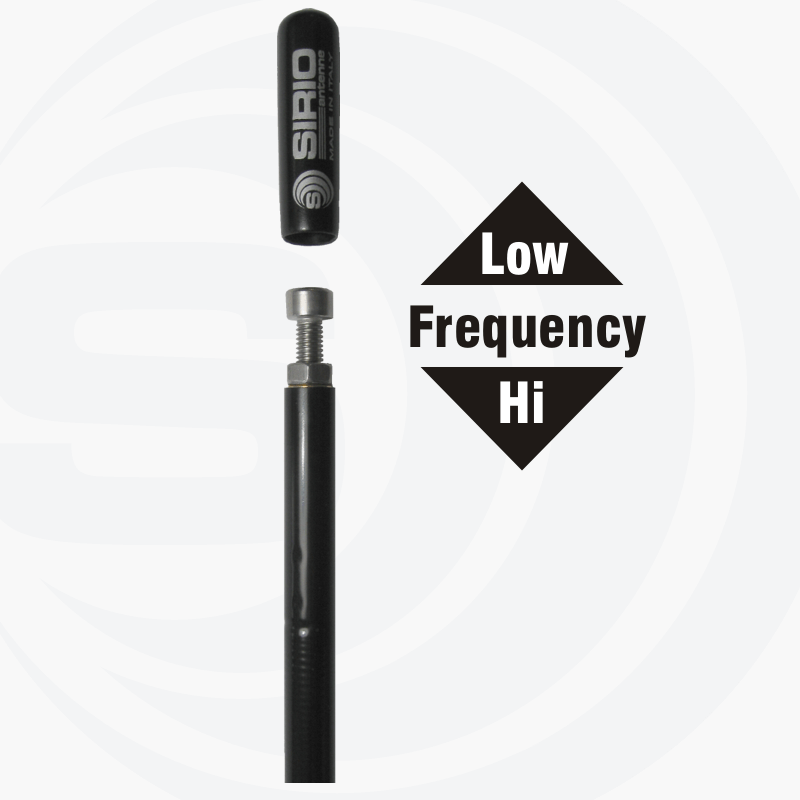

Frequency range: 26.9 … 27.5 MHz Tunable
Systems: CB 27MHz
Bandwidth:
FLEX-LOG 3:
≥ 600KHz @ SWR ≤ 2
FLEX-LOG 4:
≥ 1MHz @ SWR ≤ 2
Max Power:
FLEX-LOG 3:
100 Watts (CW) continuous
300 Watts (CW) short time
FLEX-LOG 4:
250 Watts (CW) continuous
750 Watts (CW) short time

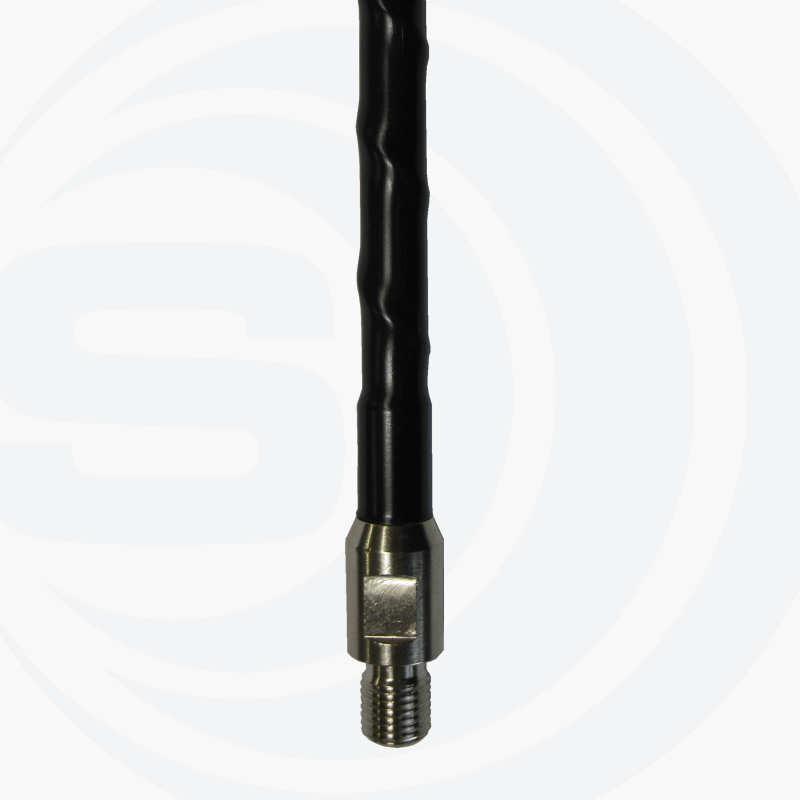

Connector: 3/8'' Thread
Mechanical Data:
Materials: Copper, Chromed brass, Fiberglass
Height (approx):
FLEX-LOG 3:
900 mm / 2.95 ft
FLEX-LOG 4:
1260 mm / 4.13 ft
Weight (approx):
FLEX-LOG 3:
135 gr / 0.3 lb
FLEX-LOG 4:
175 gr / 0.39 lb
Mounting type: 3/8'' Thread
Suitable Accessories:
Adaptor: CB-HDS 3/8-24 female / UHF-female (SO-239) (P/N:2508106.00)
