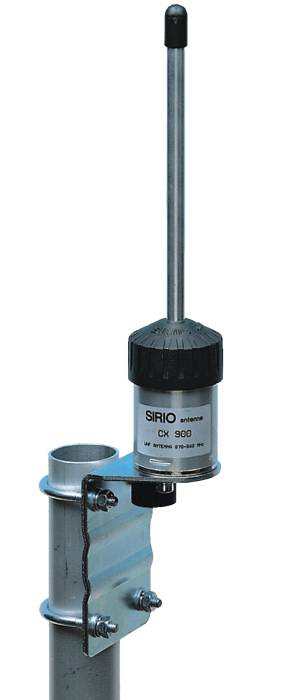

CX 840
CX 868
CX 900
Product Number: |
|
|---|---|
| 2107401.00 | CX 840 |
| 2107501.00 | CX 868 |
| 2106601.00 | CX 900 |
Electrical Data: |
|
|---|---|
| Type: | 3/4 λ coaxial J-pole |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: |
CX 840:
824-894 MHz No tuning required
CX 868:
845-885 MHz No tuning required
CX 900:
880-960 MHz No tuning required
|
| Systems: | GSM-R, GSM-900, ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz |
| Gain: | 0 dBd – 2.15 dBi |
| Max Power: | 100 W (CW) |
| Grounding protection: | DC-Ground |
| Connector: | N-female |
Mechanical Data: |
|
|---|---|
| Materials: | Aluminium, Brass, Galvanized steel, Zamak |
| Height (approx): | 370 mm / 1.21 ft |
| Weight (approx): | 470 gr / 1.04 lb |
| Mounting type: | On-Mast |
