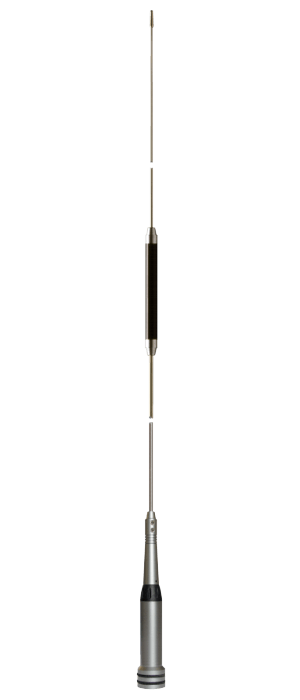

Product Number:
2211305.05	SG-CB 1000
2211405.05	SG-CB 1400

Electrical Data:
Type:	Central loaded
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	27 ... 28.5 MHz Tunable
Systems:	CB 27MHz, 10m-HAM
Bandwidth:	SG-CB 1000: ≥ 550KHz @ SWR ≤ 2 SG-CB 1400: ≥ 1.1MHz @ SWR ≤ 2
Max Power:	SG-CB 1000: 60 Watts (CW) continuous 180 Watts (CW) short time SG-CB 1400: 120 Watts (CW) continuous 360 Watts (CW) short time
Connector:	UHF-male (PL-259)

Mechanical Data:
Materials:	Copper, Chromed brass, Stainless steel, Fiberglass
Height (approx):	SG-CB 1000: 1000 mm / 3.28 ft SG-CB 1400: 1400 mm / 4.59 ft
Weight (approx):	320 gr / 0.71 lb
Mounting type:	On-Connector

Suitable Accessories:
Magnetic Mount: PM-100 PL (P/N:2502502.05)
Magnetic Mount: PM 125 PL (P/N:2502602.05)
Cable: SG AC/U Angular connector (P/N:2513005.00)
Cable: SO-239 Angular connector w/cable (P/N:2506105.00)
