Product Number:

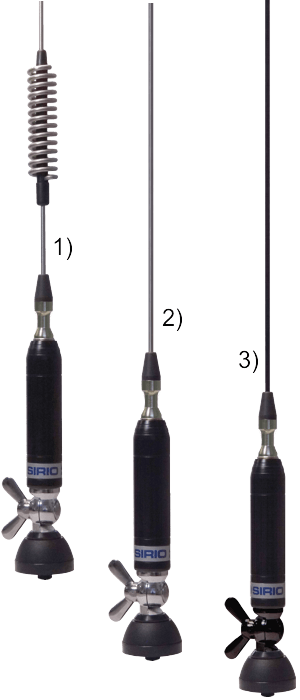

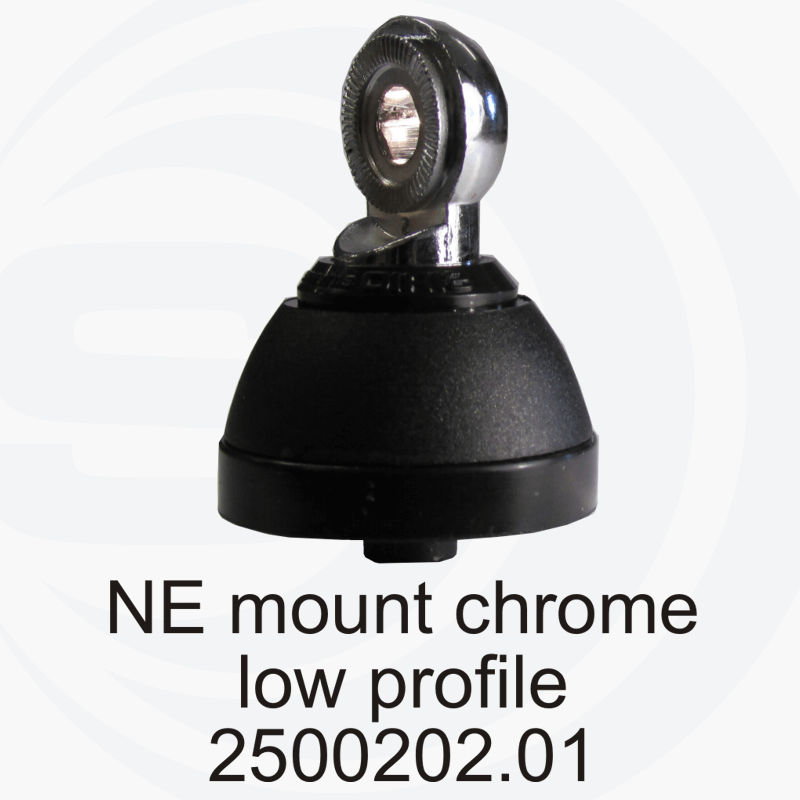

2200605.07	TITANIUM 800 NE Included: Hole mount: NE Chrome (P/N:2500202.01) Cable: 4m/13ft Cable for NE mount (P/N:2505805.00) Screw Bolt
2204505.07	TITANIUM 1000 NE Included: Hole mount: NE Chrome (P/N:2500202.01) Cable: 4m/13ft Cable for NE mount (P/N:2505805.00) Screw Bolt
2204505.07/S	TITANIUM 1200 NE Included: Hole mount: NE Chrome (P/N:2500202.01) Screw Bolt
2204506.08	TITANIUM 1500 Black NE Included: Hole mount: NE Black (P/N:2500202.02) Cable: 4m/13ft Cable for NE mount (P/N:2505805.00) Screw Bolt

Electrical Data:
Type:	Base loaded
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	27 ... 28.5 MHz Tunable
Systems:	CB 27MHz, 10m-HAM
Bandwidth:	TITANIUM 800 NE: ≥ 1.1MHz @ SWR ≤ 2 TITANIUM 1000 NE: ≥ 1.2MHz @ SWR ≤ 2 TITANIUM 1200 NE: ≥ 1.4MHz @ SWR ≤ 2 TITANIUM 1500 Black NE: ≥ 1.6MHz @ SWR ≤ 2
Max Power:	TITANIUM 800 NE: 15 Watts (CW) continuous 150 Watts (CW) short time TITANIUM 1000 NE: 15 Watts (CW) continuous 150 Watts (CW) short time TITANIUM 1200 NE: 20 Watts (CW) continuous 200 Watts (CW) short time TITANIUM 1500 Black NE: 35 Watts (CW) continuous 250 Watts (CW) short time
Cable lenght / type:	4 m (13.12 ft) / RG58
Connector:	Not supplied

Mechanical Data:
Materials:	Copper, Brass, Stainless Steel 17/7 PH, Nylon
Height (approx):	TITANIUM 800 NE: 790 mm / 2.59 ft TITANIUM 1000 NE: 975 mm / 3.2 ft TITANIUM 1200 NE: 1220 mm / 4 ft TITANIUM 1500 Black NE: 1420 mm / 4.66 ft
Weight (approx):	390 gr / 0.86 lb
Mounting type:	Thru-Hole

Suitable Accessories:

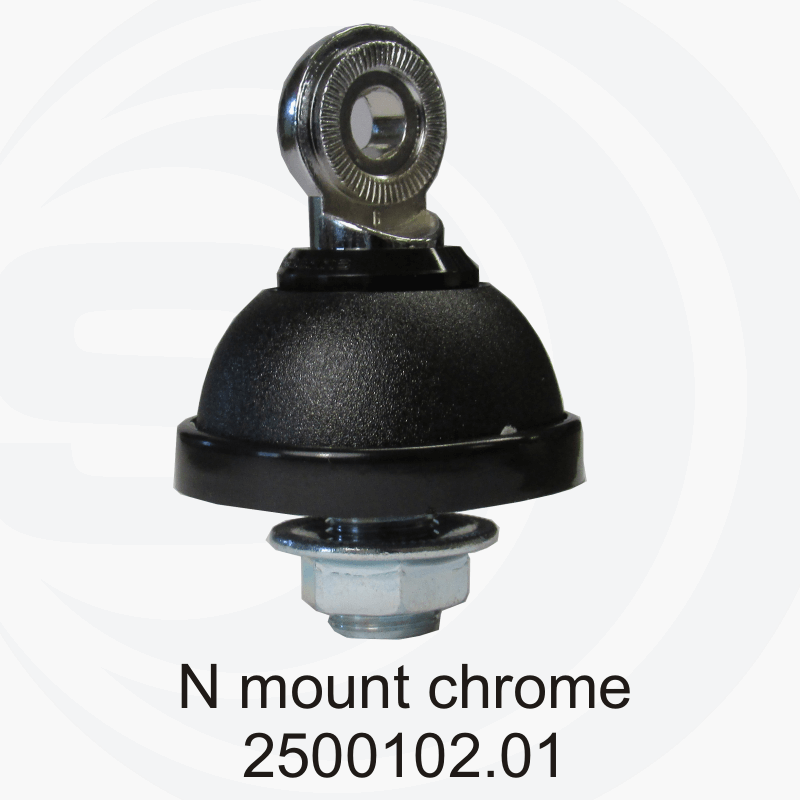

Hole mount: N Chrome (P/N:2500102.01)
Hole mount: N Black (P/N:2500102.02)
Magnetic Mount: PM-100 S (P/N:2502502.01)
Magnetic Mount: PM-100 S Black (P/N:2502502.02)
Magnetic Mount: PM-125 S (P/N:2502602.01)
Magnetic Mount: PM 125 S Black (P/N:2502602.02)
Bracket: ABN-2 Trunk Mount (P/N:2504105.00)
Bracket: KF Gutter mount (P/N:2504205.00)
Bracket: Asp-1 Chrome (P/N:2504004.00)
Connector: UHF-male (PL-259) (P/N: 2505600.00)
