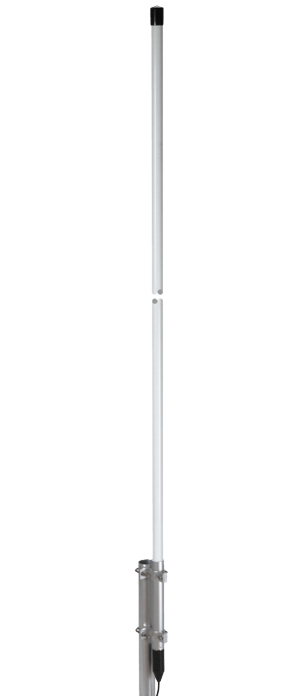

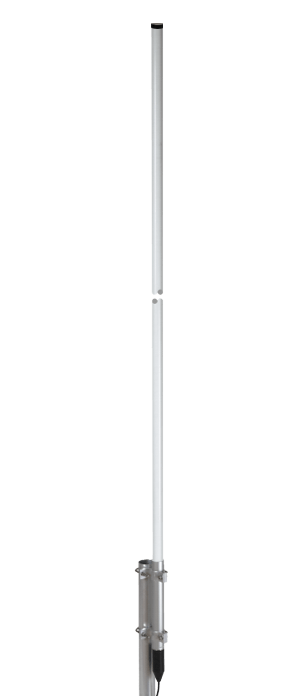

SPO 70cm Series 8 dBi

Professional Wide-Band
SPO_70cm_Series_8_dBi

Product Number:
P/N: 2115320/380 SPO-380-8
P/N: 2115320/400 SPO-400-8
P/N: 2115320/420 SPO-420-8
P/N: 2115320/440 SPO-440-8
Electrical Data:
Type: Colinear
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range:
SPO-380-8:
380-406 MHz @ SWR ≤1.5 No tuning required
SPO-400-8:
400-430 MHz @ SWR ≤1.5 No tuning required
SPO-420-8:
420-450 MHz @ SWR ≤1.5 No tuning required
SPO-440-8:
440-470 MHz @ SWR ≤1.5 No tuning required
Systems: 70cm-HAM, TETRA, CDMA-450, LTE-450, ISM/SIGFOX/LoRa 433MHz
Gain: 6 dBd – 8.15 dBi
Max Power: 75 W (CW)
Grounding protection: DC-Ground
Connector: N-female
Mechanical Data:
Materials: Anodized Aluminium, Brass, Stainless steel, Fiberglass, EPDM rubber
Height (approx):
SPO-380-8:
2940 mm / 9.65 ft
SPO-400-8:
2940 mm / 9.65 ft
SPO-420-8:
2740 mm / 8.99 ft
SPO-440-8:
2590 mm / 8.5 ft
Weight (approx):
SPO-380-8:
2040 gr / 4.5 lb
SPO-400-8:
2020 gr / 4.45 lb
SPO-420-8:
1935 gr / 4.27 lb
SPO-440-8:
1850 gr / 4.08 lb

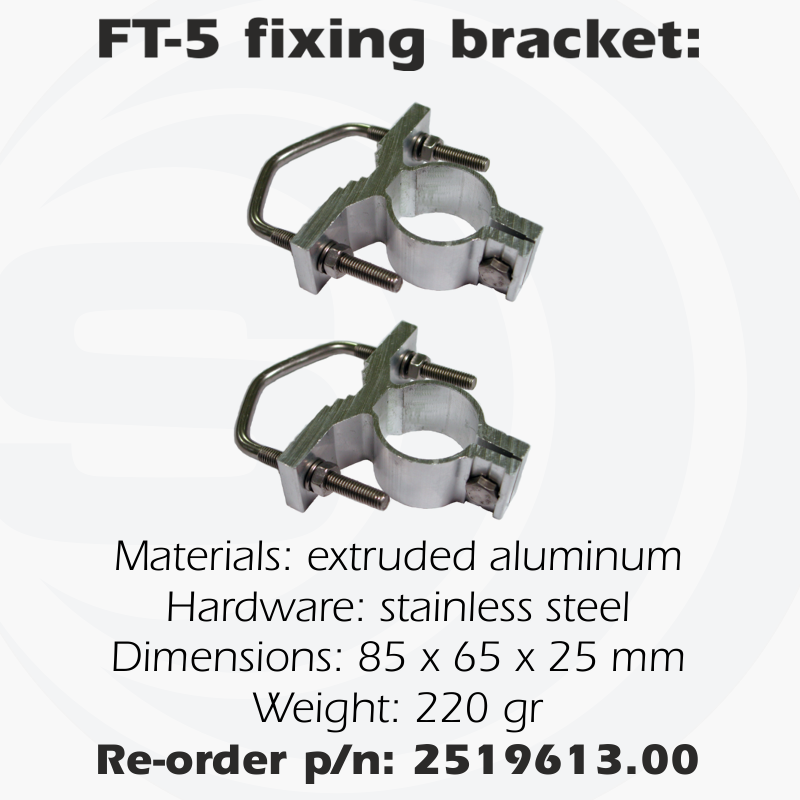

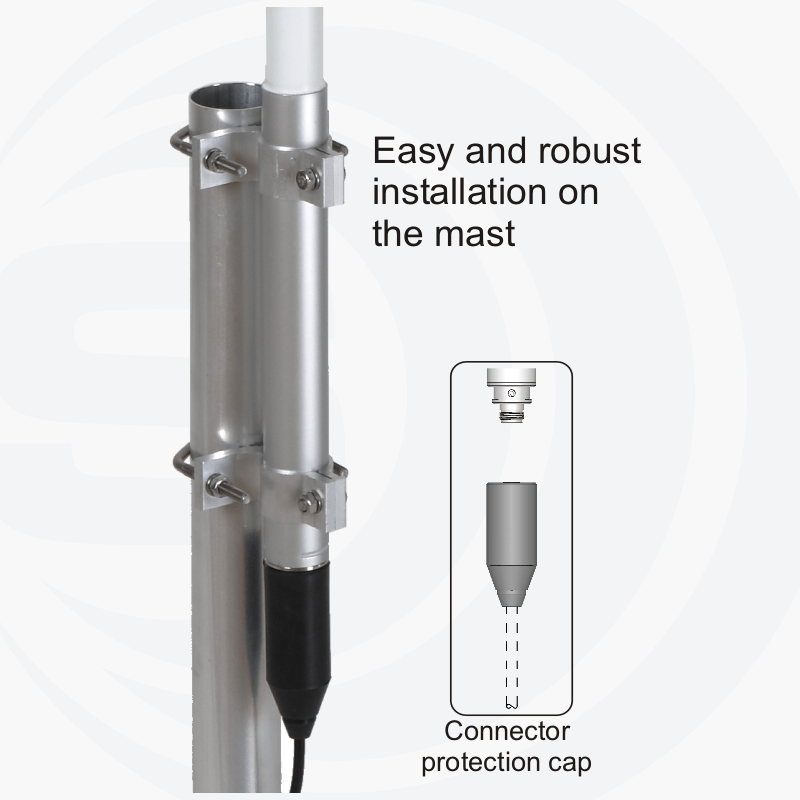

Mounting type: On-Mast
Product manual
