Product Number:

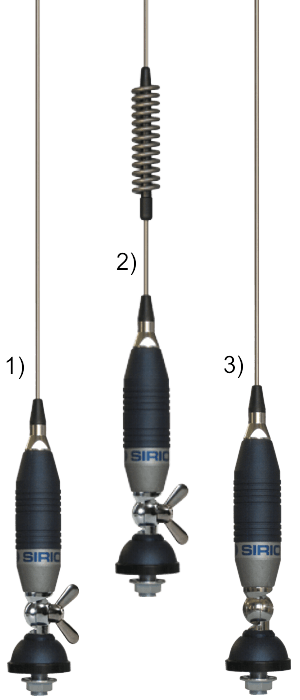

2230305.01/BLUE	SUPER 70 blue line Included: Hole mount: N Chrome (P/N:2500102.01) Cable: 4m/13ft Cable for N or N-PL mounts (P/N:2505705.00) Screw Bolt
2229905.01/BLU	SUPER 900 blue line Included: Hole mount: N Chrome (P/N:2500102.01) Cable: 4m/13ft Cable for N or N-PL mounts (P/N:2505705.00) Screw Bolt
2230005.01/BLUE	SUPER 9 blue line Included: Hole mount: N Chrome (P/N:2500102.01) Cable: 4m/13ft Cable for N or N-PL mounts (P/N:2505705.00) Safety set

Electrical Data:
Type:	base loaded
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	27 … 28.5 MHz Tunable
Systems:	CB 27MHz, 10m-HAM
Bandwidth:	SUPER 70 blue line: ≥ 1.2MHz @ SWR ≤ 2 SUPER 900 blue line: ≥ 1.1MHz @ SWR ≤ 2 SUPER 9 blue line: ≥ 1.9MHz @ SWR ≤ 2
Max Power:	SUPER 70 blue line: 15 Watts (CW) continuous; 150 Watts (CW) short time SUPER 900 blue line: 15 Watts (CW) continuous; 150 Watts (CW) short time SUPER 9 blue line: 35 Watts (CW) continuous; 250 Watts (CW) short time
Cable lenght / type:	4 m (13.12 ft) / RG58
Connector:	Not supplied

Mechanical Data:
Materials:	Copper, Brass, Stainless Steel 17/7 PH, Nylon
Height (approx):	SUPER 70 blue line: 700 mm / 2.3 ft SUPER 900 blue line: 780 mm / 2.56 ft SUPER 9 blue line: 1550 mm / 5.09 ft
Weight (approx):	SUPER 70 blue line: 380 gr / 0.84 lb SUPER 900 blue line: 450 gr / 0.99 lb SUPER 9 blue line: 420 gr / 0.93 lb
Mounting type:	Thru-Hole

Suitable Accessories:
Hole mount: N Chrome (P/N:2500102.01)
Hole mount: NE Chrome (P/N:2500202.01)
Magnetic Mount: PM-100 S (P/N:2502502.01)
Magnetic Mount: PM-125 S (P/N:2502602.01)
Magnetic Mount: MAG 145 S (P/N:2502702.01)
Cable: 4m/13ft Cable for N or N-PL mounts (P/N:2505705.00)
Bracket: ABN-2 Trunk Mount (P/N:2504105.00)
Bracket: KF Gutter mount (P/N:2504205.00)
Bracket: Asp-1 Chrome (P/N:2504004.00)
Connector: UHF-male (PL-259) (P/N: 2505600.00)
Screw Bolt
Safety set
