Product Number:

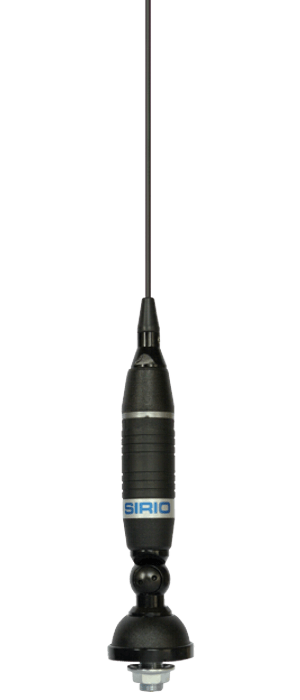

2206306.02	OMEGA 27 Included: Hole mount: N Black (P/N:2500102.02) Cable: 4m/13ft Cable for N or N-PL mounts (P/N:2505705.00) Safety set

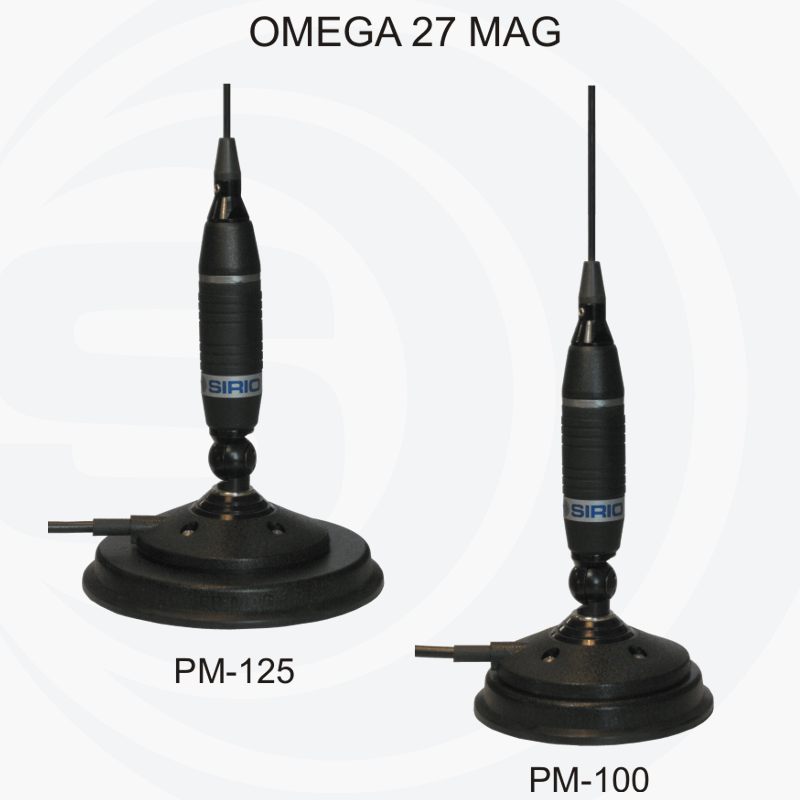

2206306.61	OMEGA 27 MAG (PM-100) Included: Magnetic Mount: PM-100 S Black (P/N:2502502.02) Safety set
2206306.64	OMEGA 27 MAG (PM-125) Included: Magnetic Mount: PM 125 S Black (P/N:2502602.02) Safety set

Electrical Data:
Type:	Base loaded
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	27 … 28.5 MHz Tunable
Systems:	CB 27MHz, 10m-HAM
Bandwidth:	≥ 1.44MHz @ SWR ≤ 2
Max Power:	15 Watts (CW) continuous 150 Watts (CW) short time
Cable lenght / type:	OMEGA 27: 4 m (13.12 ft) / RG58 OMEGA 27 MAG (PM-100): 3.6 m (11.81 ft) / RG58 OMEGA 27 MAG (PM-125): 3.6 m (11.81 ft) / RG58
Connector:	OMEGA 27: Not supplied OMEGA 27 MAG (PM-100): UHF-male (PL-259) OMEGA 27 MAG (PM-125): UHF-male (PL-259)

Mechanical Data:
Materials:	Copper, Brass, Stainless Steel 17/7 PH, Nylon
Height (approx):	945 mm / 3.1 ft
Weight (approx):	390 gr / 0.86 lb
Mounting type:	OMEGA 27: Thru-Hole OMEGA 27 MAG (PM-100): Magnetic mount OMEGA 27 MAG (PM-125): Magnetic mount

Suitable Accessories:
Hole mount: NE Black (P/N:2500202.02)
Bracket: ABN-2 Trunk Mount (P/N:2504105.00)
Bracket: KF Gutter mount (P/N:2504205.00)
Bracket: Asp-1 Chrome (P/N:2504004.00)
Connector: UHF-male (PL-259) (P/N: 2505600.00)
