Product Number:

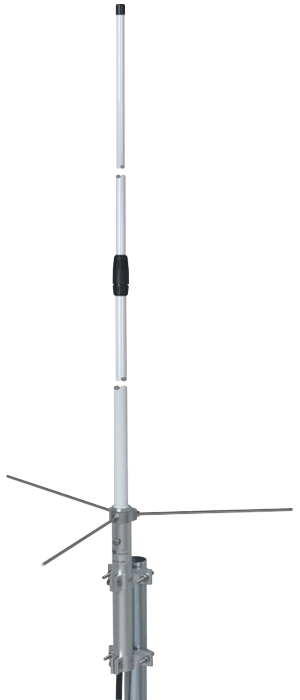

2106220.00	SA 22-N

Electrical Data:
Type:	2 x 5/8 λ ground plane colinear
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	142-148 MHz No tuning required
Systems:	2m-HAM, ORBCOMM M2M
Gain:	3.6 dBd – 5.75 dBi
Max Power:	200 W (CW)
Grounding protection:	DC-Ground
Connector:	N-female

Mechanical Data:
Materials:	Anodized Aluminium, Brass, Stainless steel, Fiberglass, Zamak
Height (approx):	2790 mm / 9.15 ft
Weight (approx):	1220 gr / 2.69 lb
Mounting type:	On-Mast
