MADE IN ITALY since 1972

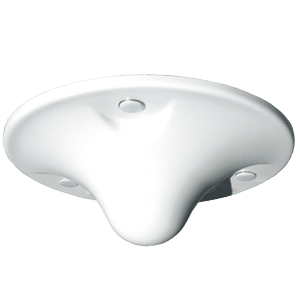

SCM-918-2


Product Number:
P/N: 2110703.00 SCM-918-2
Electrical Data:
Type: 1/4 λ ground plane
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 876-960 MHz & 1.71-2.17 GHz No tuning required
Systems: GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, ISM/SIGFOX/LoRa 915MHz, DECT
Gain: 0dBd – 2.15 dBi
Max Power: 50 W (CW)
Grounding protection: DC-Ground
Connector: N-female
Mechanical Data:
Materials: Aluminium, Brass, Thermoplastic UV stabilized

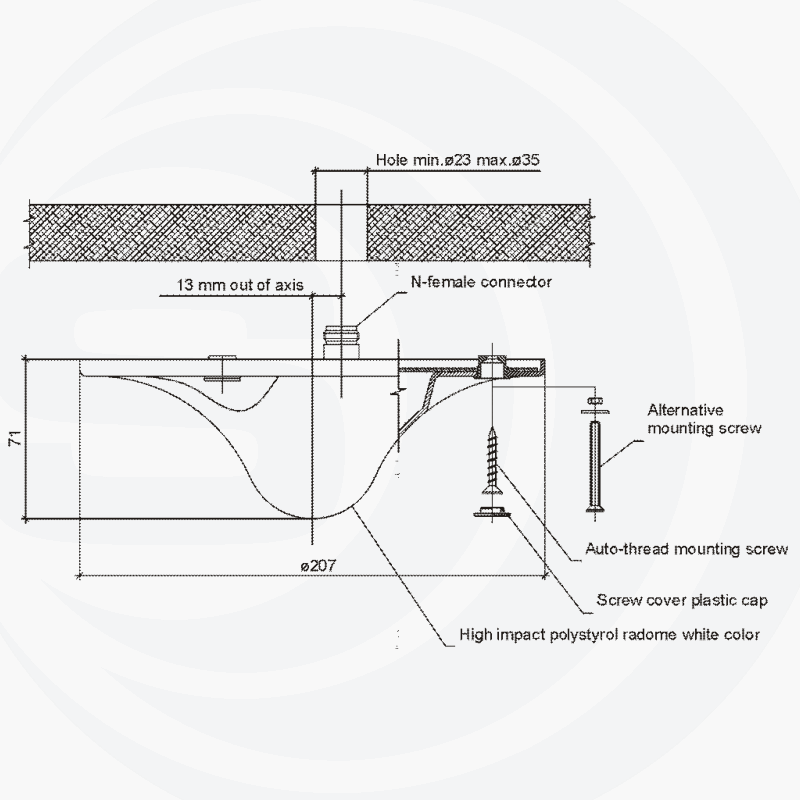

Dimensions (approx): 71 x Ø207 mm / 0.23 x Ø0.68 ft
Weight (approx): 340 gr / 0.75 lb
Mounting type: Ceiling
