HP 2070 R
HP 2070 H
Dual-Band: 2m And 70cm Bands

1) HP 2070 R
2) HP 2070 H
2) HP 2070 H
Features:
Available Version for USA ham band (146 & 445 MHz)
Versions "For Middle East only" are manufactured according to Saudi standards.
Product Number:
P/N: 2210405.05 | HP 2070 H |
P/N: 2210405.05 | HP 2070 H (For Middle East only) |
P/N: 2210705.05 | HP 2070 R |
Electrical Data:
Type: | VHF: 1/2 λ UHF: 2 x 5/8 λ Colinear |
Ground plane independent | |
Radiation: | Omnidirectional |
Polarization: | Linear vertical |
Frequency range: |
|
Systems: | 2m-HAM, 70cm-HAM, ORBCOMM M2M, TETRA |
Gain: | HP 2070 H: VHF 0.7 dB UHF 4.4 dB ref. to a λ/4 whip HP 2070 R: VHF 0.6 dB UHF 4.6 dB ref. to a λ/4 whip |
Max Power: |
VHF: 70 W (CW) UHF: 80 W (CW) |
Grounding protection: | DC-Ground |

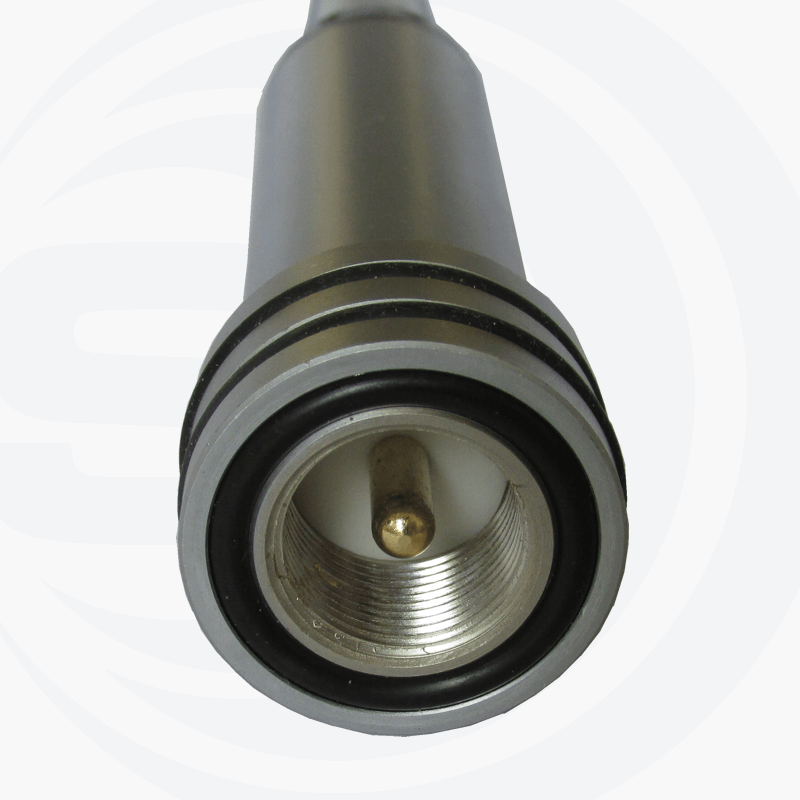

Connector: | UHF-male (PL-259) |
Mechanical Data:
Materials: | Brass, Stainless Steel 17/7 PH, Nylon |
Height (approx): |
|
Weight (approx): |
|
Mounting type: | On-Connector |
Suitable Accessories:
Magnetic Mount: PM-100 PL (P/N:2502502.05) |
Magnetic Mount: PM 125 PL (P/N:2502602.05) |
Cable: HP-AC/U Angular Connector (P/N:2510805.00) |
