Product Number:

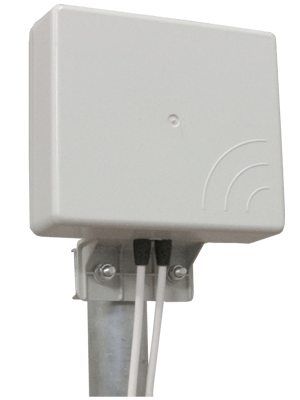

2112803.00	SMP-X WLAN MiMo

Electrical Data:
Type:	Mini Panel
Radiation:	Directional
Polarization:	Cross
Frequency range:	2.4-2.5 GHz & 5.15-5.89 GHz No tuning required
Systems:	WiFi-2.4GHz, WiFi-5GHz
Gain:	7 dBi @ 2.4-2.5 GHz 11.4 dBi @ 5.15-5.89 GHz
Max Power:	20 Watts @ 2.4-2.5 GHz 8 Watts @ 5.15-5.89 GHz
Connector:	2 x SMA-male
Cable lenght / type:	2 x 30 cm (11.81 in) / Low loss

Mechanical Data:
Materials:	Galvanized steel, Thermoplastic UV stabilized
Dimensions (approx):	153 x 134 x 36 mm / 0.5 x 0.44 x 0.12 ft
Weight (approx):	420 gr / 0.93 lb
Mounting type:	On-Mast, On-Wall

Suitable Accessories:

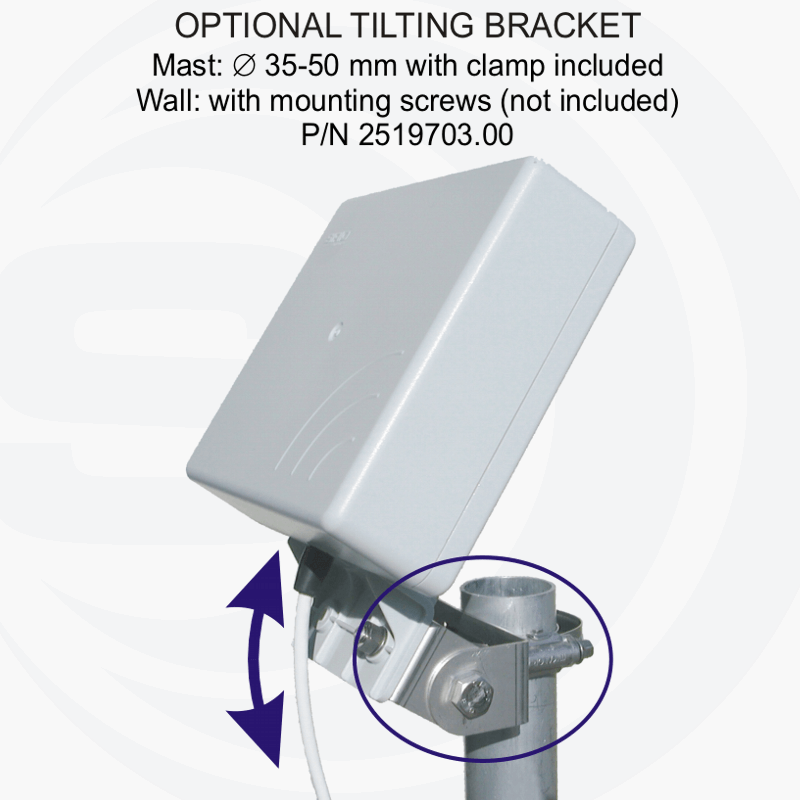

Tilting bracket for SMP series
