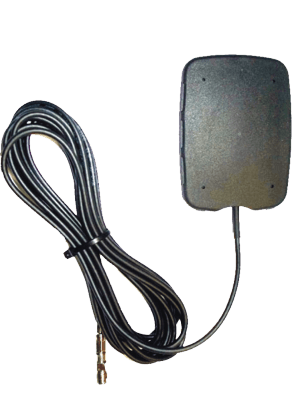

INGLASS LTE & WLAN

Wideband, On-Glass Mount

UP GRADED

Product Number:
2216802.93 IN-GLASS LTE & WLAN
Electrical Data:
Type: On-glass indoor
Radiation: Omnidirectional
Polarization: Linear Vertical or Horizontal
Frequency range: 800-960 MHz, 1.71-5.925 GHz
Systems: GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz, WiFi-2.4GHz, WiFi-5GHz, WiMAX, V2X
Gain: 0 dBd – 2.1 dBi all bands
Max Power: 10 Watts from 800 to 2700 MHz
6 Watts from 2.7 to 3.8 GHz
5 Watts from 3.8 to 5.925 GHz
Cable lenght / type: 3 m (9.84 ft) / RG174
Connector: SMA-male, Other type on request
Mechanical Data:
Materials: Copper, Thermoplastic UV stabilized, PCB
Dimensions (approx): 55 x 77 x 10 mm / 0.18 x 0.25 x 0.03 ft
Weight (approx): 70 gr / 0.15 lb
Mounting type: On-Glass, Adhesive Mount
