Features:

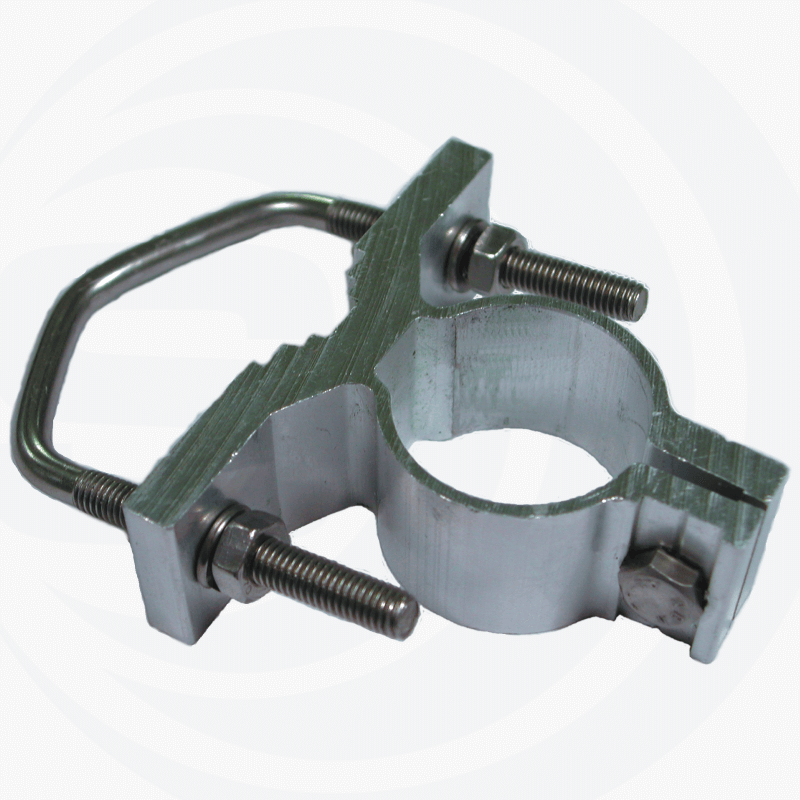

Pole fixing bracket: max diameter increased to 60mm

Product Number:
2130220.00/NM	SCO-2.4-6 N-m
2130220.00	SCO-2.4-6 N-f
2130320.00	SCO-2.4-9 N-f

Electrical Data:

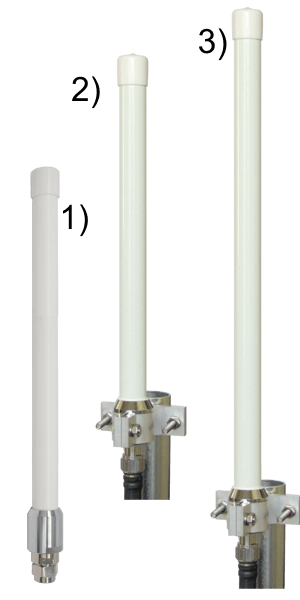

Type:	SCO 2.4-6: 3×1/2 λ colinear SCO 2.4-9: 7×1/2 λ colinear
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	2.4-2.485 GHz @ SWR ≤ 1.5 No tuning required
Systems:	WiFi-2.4GHz
Gain:	SCO 2.4-6: 3.9 dBd – 6 dBi SCO 2.4-9: 6.9 dBd – 9 dBi
Max Power:	20 W (CW)
Grounding protection:	DC-Ground

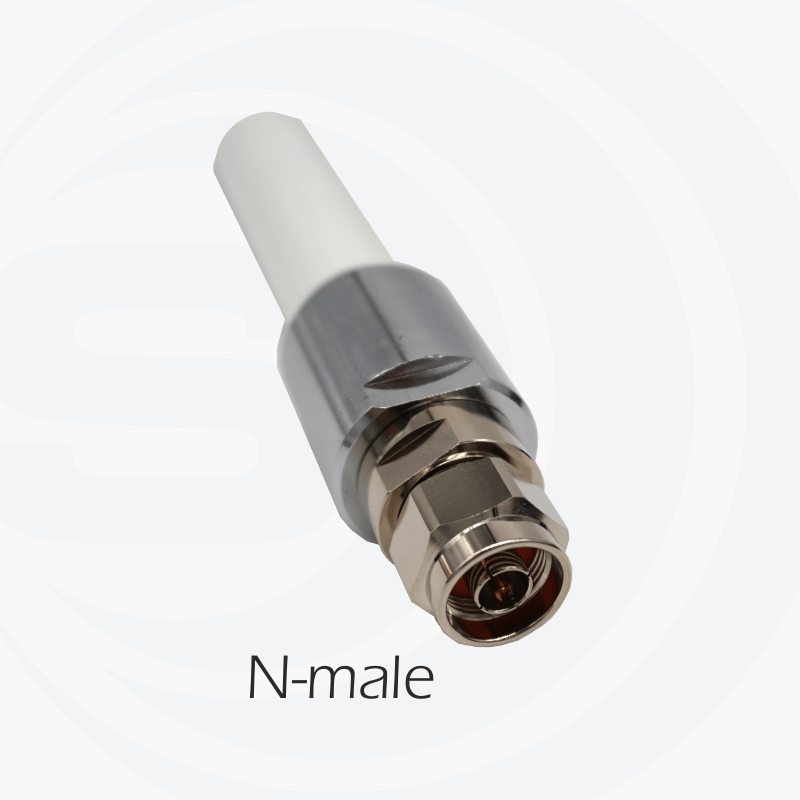

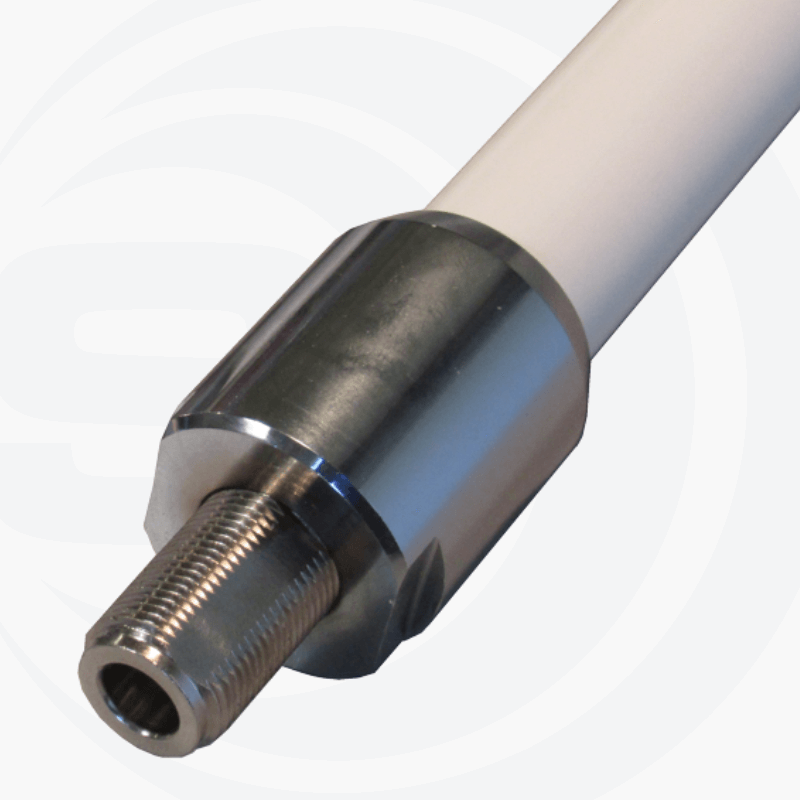

Connector:	SCO-2.4-6 N-m: N-male SCO-2.4-6 N-f: N-female SCO-2.4-9 N-f: N-female

Mechanical Data:
Materials:	Aluminium, Chromed brass, Stainless steel, Fiberglass, PCB
Height (approx):	SCO-2.4-6 N-m: 390 mm / 1.28 ft SCO-2.4-6 N-f: 385 mm / 1.26 ft SCO-2.4-9 N-f: 630 mm / 2.07 ft
Weight (approx):	SCO-2.4-6 N-m: 300 gr / 0.66 lb SCO-2.4-6 N-f: 350 gr / 0.77 lb SCO-2.4-9 N-f: 415 gr / 0.91 lb
Mounting type:	SCO-2.4-6 N-m: On-Connector SCO-2.4-6 N-f: On-Mast SCO-2.4-9 N-f: On-Mast
