Product Number:

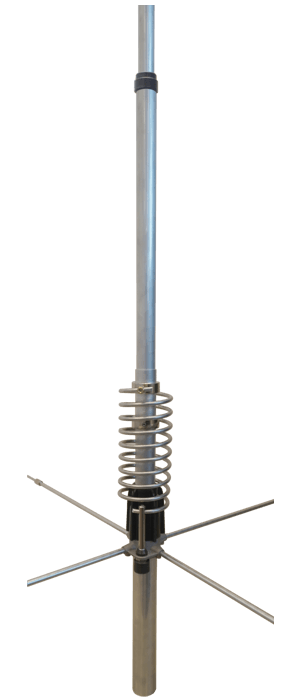

2100601.00	MONSOON

Electrical Data:
Type:	5/8 λ ground plane
Radiation:	Omnidirectional
Polarization:	Linear vertical

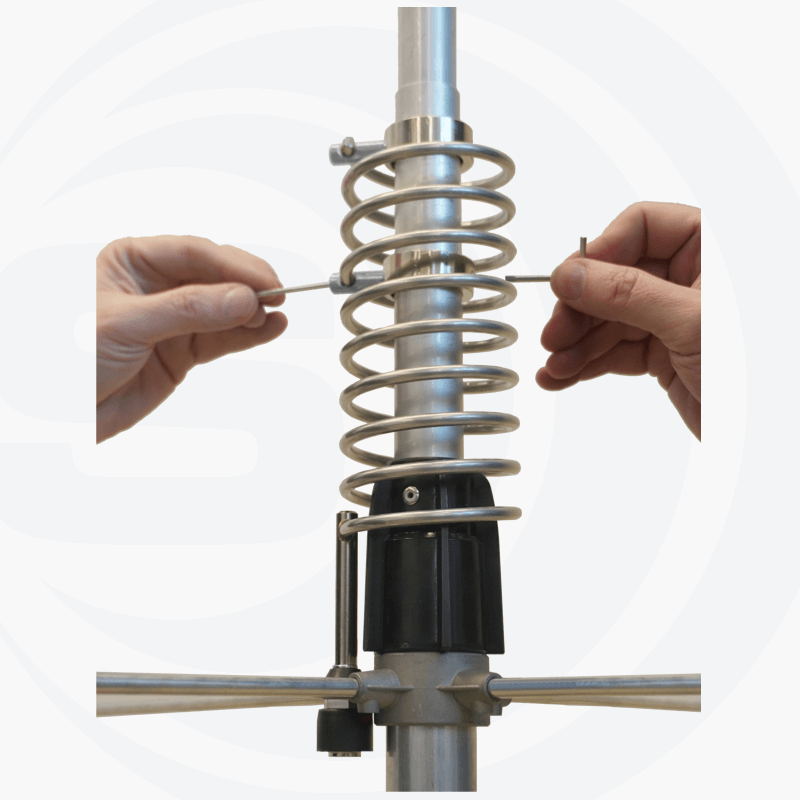

Frequency range:	26 ... 30 MHz Tunable
Systems:	10m-HAM
Gain:	1.2 dBd, 3.35 dBi
Bandwidth:	≥ 1.3MHz @ SWR ≤ 2
Max Power:	1000 Watts (CW) continuous 3000 Watts (CW) short time
Connector:	UHF-female (SO-239)

Mechanical Data:
Materials:	Aluminium, Brass, Galvanized steel, Thermoplastic UV stabilized
Height (approx):	7180 mm / 23.56 ft
Weight (approx):	3000 gr / 6.61 lb
Mounting type:	On-Mast
