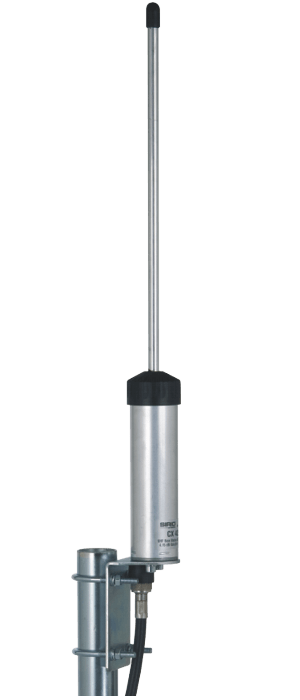

CX 70 cm

CX_70_cm

Product Number:
P/N: 2104101.00 CX 380
P/N: 2107301.00 CX 395
P/N: 2102501.00 CX 410
P/N: 2102601.00 CX 425
P/N: 2102701.00 CX 440
P/N: 2102801.00 CX 455
P/N: 2107701.00 CX 470
Electrical Data:
Type: 3/4 λ coaxial J-pole
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range:
CX 380:
380-395 MHz @ SWR ≤1.5 No tuning required
CX 395:
395-410 MHz @ SWR ≤1.5 No tuning required
CX 410:
410-425 MHz @ SWR ≤1.5 No tuning required
CX 425:
425-440 MHz @ SWR ≤1.5 No tuning required
CX 440:
440-455 MHz @ SWR ≤1.5 No tuning required
CX 455:
455-470 MHz @ SWR ≤1.5 No tuning required
CX 470:
470-485 MHz @ SWR ≤1.5 No tuning required
Systems: 70cm-HAM, TETRA-350, TETRA, CDMA-450, ISM/SIGFOX/LoRa 433MHz
Gain: 2dBd – 4.15 dBi
Max Power: 250 W (CW)
Grounding protection: DC-Ground

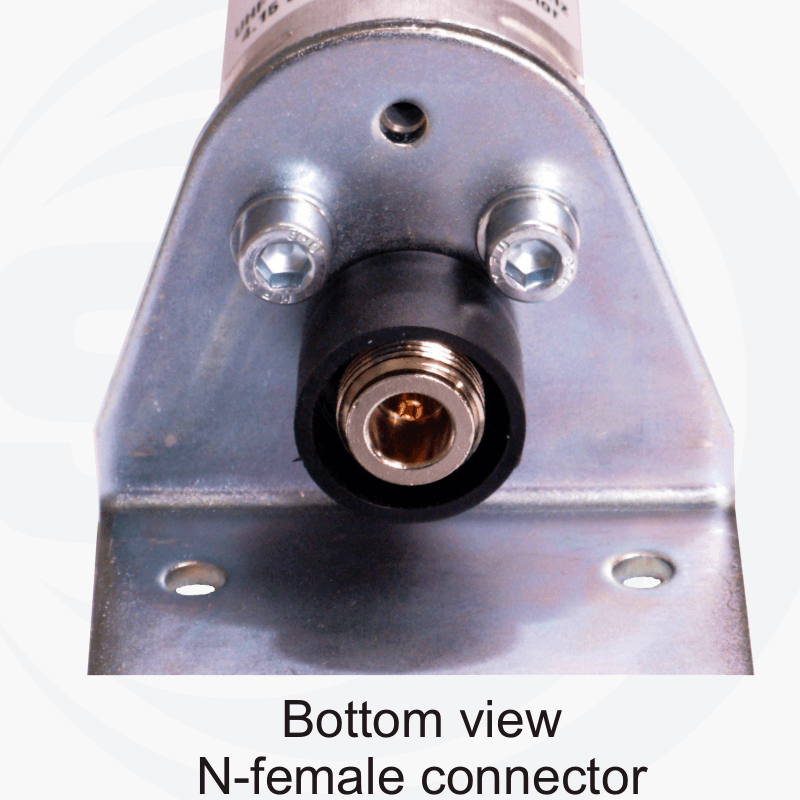

Connector: N-female
Mechanical Data:
Materials: Aluminium, Brass, Stainless steel, Nylon
Height (approx):
CX 380:
665 mm / 2.18 ft
CX 395:
645 mm / 2.12 ft
CX 410:
625 mm / 2.05 ft
CX 425:
605 mm / 1.98 ft
CX 440:
590 mm / 1.94 ft
CX 455:
575 mm / 1.89 ft
CX 470:
558 mm / 1.83 ft
Weight (approx): 540 gr / 1.19 lb
Mounting type: On-Mast
Product manual
