MADE IN ITALY since 1972

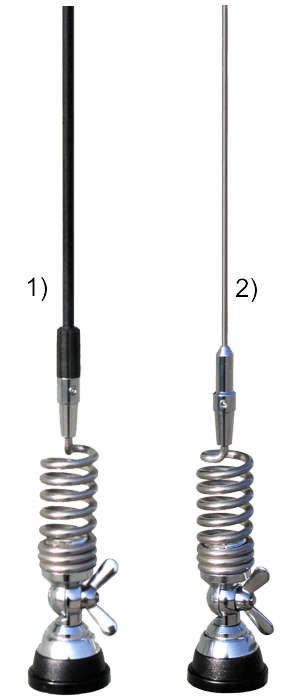

SM 48/140
SMA 47/135

Dual-Band: 6m And 2m Bands

Product Number:
P/N: 2205024.32 SM 48/140 S mount
Included:
Hole mount: S
Screw Bolt
P/N: 2205024.28 SM 48/140 SL mount
Included:
Hole mount: SL
Wing Bolt
P/N: 2205105.32 SMA 47/135 S mount
Included:
Hole mount: S
Screw Bolt
P/N: 2205105.28 SMA 47/135 SL mount
Included:
Hole mount: SL
Wing Bolt
Electrical Data:
Type: LOW-VHF: 1/4 λ  HIGH-VHF: 5/8 λ
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range:
SM 48/140 S mount:
47.5 … 60.5 MHz & 140…175 MHz Tunable
SM 48/140 SL mount:
47.5 … 60.5 MHz & 140…175 MHz Tunable
SMA 47/135 S mount:
46.5 … 61.5 MHz & 135 … 175 MHz Tunable
SMA 47/135 SL mount:
46.5 … 61.5 MHz & 135 … 175 MHz Tunable
Systems: 6m-HAM, 2m-HAM, VHF Marine Band, ORBCOMM M2M, ISM-169MHz
Gain: LOW-VHF: 0 dB ref. to a λ/4 whip
HIGH-VHF: 2 dB ref. to a λ/4 whip
Max Power: 100 W (CW)
Cable lenght / type: 5 m (16.4 ft) / RG58
Connector: Not supplied
Mechanical Data:
Materials: Chromed brass, Stainless steel, Stainless Steel 17/7 PH, Fiberglass, Nylon
Height (approx):
SM 48/140 S mount:
1340 mm / 4.4 ft
SM 48/140 SL mount:
1340 mm / 4.4 ft
SMA 47/135 S mount:
1505 mm / 4.94 ft
SMA 47/135 SL mount:
1505 mm / 4.94 ft
Weight (approx): 550 gr / 1.21 lb
Mounting type: Thru-Hole
