MADE IN ITALY since 1972

SMA 108-550 PL
MGA 108-550 PL
MGA-E 136-174 PL (Egypt only)

SMA_108-550_PL_MGA_108-550_PL
1) SMA 108-550 PL
2) MGA 108-550 PL / MGA-E 136-174 PL

Features:
MGA-E 136-174 PL: for Egypt market only

Product Number:
P/N: 2430205.05 SMA 108-550 PL
P/N: 2431505.05 MGA 108-550 PL
Electrical Data:
Type: 1/4 λ
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 108 … 550 MHz Tunable
Systems: 2m-HAM, 1.25m-HAM, 70cm-HAM, VHF Airband, VHF Marine Band, ORBCOMM M2M, AIS-162MHz, TETRA-350, TETRA, CDMA-450, LTE-450, ISM-169MHz, VHF-260MHz
Gain: 0 dB ref. to a λ/4 whip
Bandwidth:
SMA 108-550 PL:
≥ 11MHz @ SWR ≤ 2
MGA 108-550 PL:
≥ 11.5MHz @ SWR ≤ 2
Max Power: 100 W (CW)

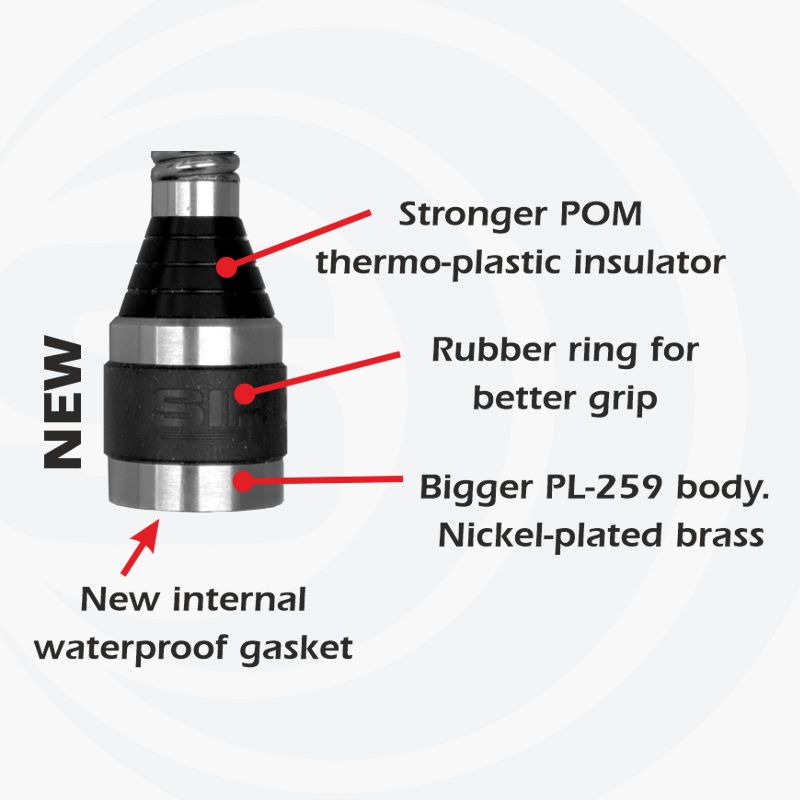

Connector: UHF-male (PL-259)
Mechanical Data:
Materials: Chromed brass, Stainless steel
Height (approx):
SMA 108-550 PL:
663 mm / 2.18 ft
MGA 108-550 PL:
670 mm / 2.2 ft
Weight (approx):
SMA 108-550 PL:
55 gr / 0.12 lb
MGA 108-550 PL:
70 gr / 0.15 lb
Mounting type: On-Connector
Suitable Accessories:
Magnetic Mount: PM 125 PL (P/N:2502602.05)
Cable: HP-AC/U Angular Connector (P/N:2510805.00)
