SCO-868-4
SCO-868-6

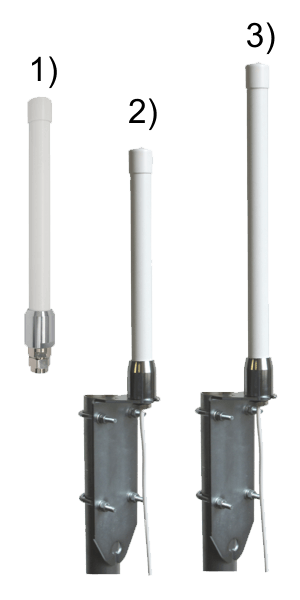

SCO868-6-4_300x
1) SCO-868-4 N-m
2) SCO-868-4 W/Cable
3) SCO-868-6 W/Cable

NEW PRODUCT

Product Number:
2111620.00/NM SCO-868-4 N-m
2111620.00 SCO-868-4 N-f
2111720.00 SCO-868-6 N-f
2111620.80 SCO-868-4 W/Cable
2111720.80 SCO-868-6 W/Cable
Electrical Data:
Type: Colinear
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 868-870 MHz @ SWR ≤1.5 No tuning required
Systems: ISM/SIGFOX/LoRa 868MHz
Gain: SCO-868-4: 2.2 dBd – 4.3 dBi
SCO-868-6: 4.1 dBd – 6.2 dBi
Max Power: 20 W (CW)
Cable lenght / type:
SCO-868-4 N-m:
0 cm (0 in) / Not supplied
SCO-868-4 N-f:
0 cm (0 in) / Not supplied
SCO-868-6 N-f:
0 cm (0 in) / Not supplied
SCO-868-4 W/Cable:
5 m (16.4 ft) / Low loss
SCO-868-6 W/Cable:
5 m (16.4 ft) / Low loss

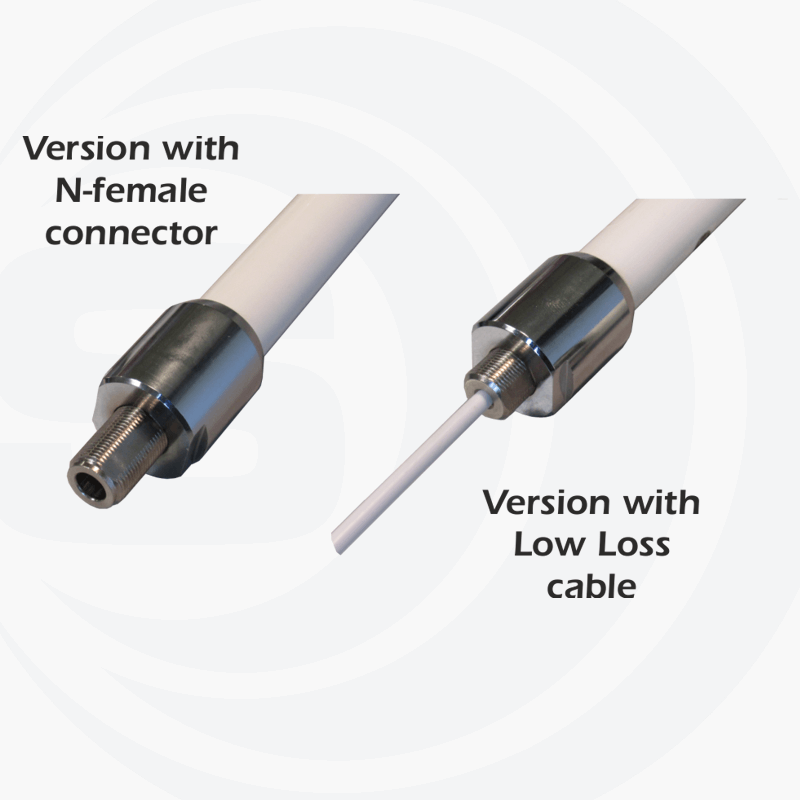

Connector:
SCO-868-4 N-m:
N-male
SCO-868-4 N-f:
N-female
SCO-868-6 N-f:
N-female
SCO-868-4 W/Cable:
SMA-male, Other type on request
SCO-868-6 W/Cable:
SMA-male, Other type on request
Mechanical Data:
Materials: Chromed brass, Galvanized steel, Fiberglass, PCB
Height (approx):
SCO-868-4 N-m:
500 mm / 1.64 ft
SCO-868-4 N-f:
500 mm / 1.64 ft
SCO-868-6 N-f:
770 mm / 2.53 ft
SCO-868-4 W/Cable:
500 mm / 1.64 ft
SCO-868-6 W/Cable:
770 mm / 2.53 ft
Weight (approx):
SCO-868-4 N-m:
280 gr / 0.62 lb
SCO-868-4 N-f:
280 gr / 0.62 lb
SCO-868-6 N-f:
330 gr / 0.73 lb
SCO-868-4 W/Cable:
440 gr / 0.97 lb
SCO-868-6 W/Cable:
490 gr / 1.08 lb
Mounting type:
SCO-868-4 N-m:
On-Connector
SCO-868-4 N-f:
On-Mast, Thru-Holes, On-Wall
SCO-868-6 N-f:
On-Mast, Thru-Holes, On-Wall
SCO-868-4 W/Cable:
On-Mast, Thru-Holes, On-Wall
SCO-868-6 W/Cable:
On-Mast, Thru-Holes, On-Wall
