SKB 108-960

SKB_108-960

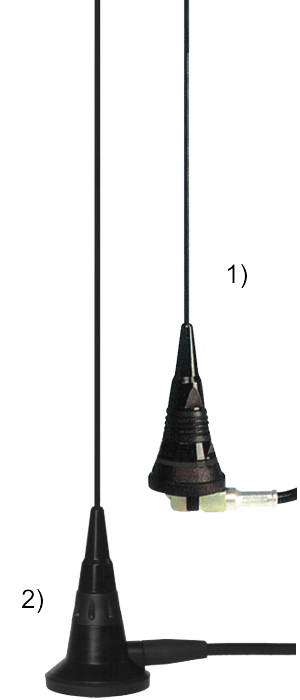

1) SKB 108-960, ML mount
2) SKB 108-960, CELL-MAG mount

Product Number:
P/N: 2209706.48 SKB 108-960 ML
Included:
Hole mount: ML
P/N: 2209706.26 SKB 108-960 ML w/ FME-f
Included:
Hole mount: ML
P/N: 2209706.75 SKB 108-960 CELL-MAG
Included:
Magnetic Mount: CELL-MAG (P/N:2510202.00)
Electrical Data:
Type: 1/4 λ
Radiation: Omnidirectional
Frequency range: 108 … 960 MHz Tunable
Systems: 2m-HAM, 1.25m-HAM, 70cm-HAM, VHF Airband, VHF Marine Band, VHF Low-band (66-88MHz), ORBCOMM M2M, AIS-162MHz, TETRA-350, TETRA, CDMA-450, LTE-450, GSM-R, GSM-900, ISM-169MHz, ISM-868MHz, ISM-915MHz
Gain: 0 dB ref. to a λ/4 whip
Max Power: 108 - 550 MHz: 100W (CW)
550 - 960 MHz: 30W (CW)
Cable lenght / type:
SKB 108-960 ML:
5 m (16.4 ft) / RG58
SKB 108-960 ML w/ FME-f:
5 m (16.4 ft) / RG58
SKB 108-960 CELL-MAG:
3 m (9.84 ft) / RG58
Connector:
SKB 108-960 ML:
Not supplied
SKB 108-960 ML w/ FME-f:
FME-female
SKB 108-960 CELL-MAG:
FME-female
Mechanical Data:
Materials: Chromed brass, Stainless Steel 17/7 PH, Nylon
Height (approx): 700 mm / 2.3 ft
Weight (approx): 280 gr / 0.62 lb
Mounting type:
SKB 108-960 ML:
Thru-Hole
SKB 108-960 ML w/ FME-f:
Thru-Hole
SKB 108-960 CELL-MAG:
Magnetic mount
