MADE IN ITALY since 1972

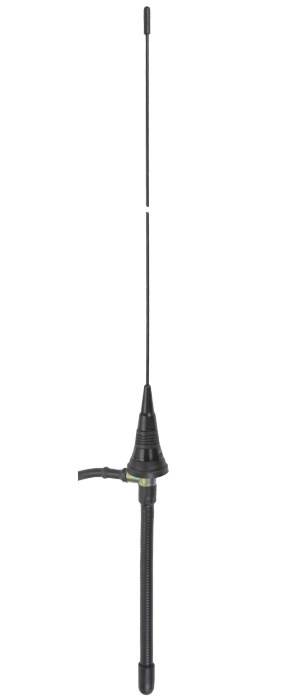

MD 118-137 Aviation

Suitable For Aeronautical Service

Product Number:
P/N: 2214806.26 MD 118-137 Aviation
Electrical Data:
Type: 1/2 λ
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 118-137 MHz No tuning required
Systems: VHF Airband
Gain: 0 dBd – 2.15 dBi
Max Power: 50 W (CW)
Cable lenght / type: 5 m (16.4 ft) / RG58
Connector: FME-female, Other type on request
Mechanical Data:
Materials: Chromed brass, Stainless Steel 17/7 PH, Nylon, Zamak
Height (approx): 760 mm / 2.49 ft
Weight (approx): 330 gr / 0.73 lb

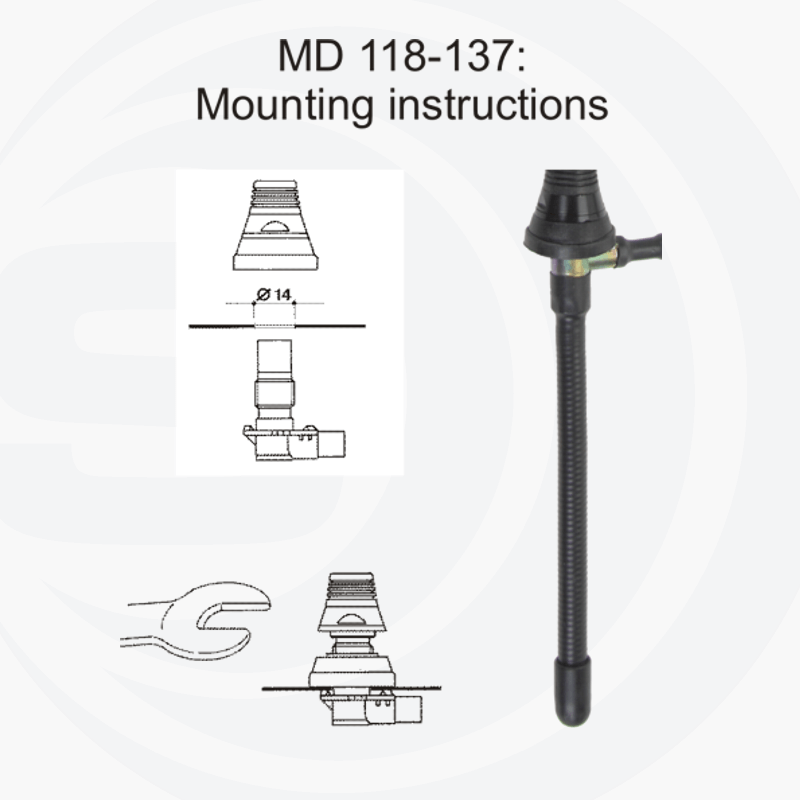

Mounting type: Thru-Hole
