SB 1 S
SB 2 S

Designed To Work Without Ground Plane

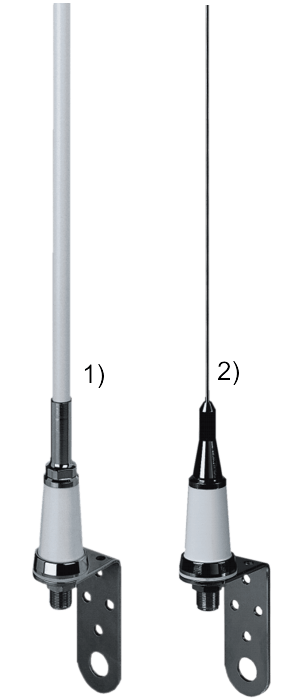

SB_1_S_SB_2_S
1) SB 1 S
2) SB 2 S

Product Number:
P/N: 2300420.80 SB 1 S
Included:
Bracket: M-1 Bracket (P/N:2503503.00)
P/N: 2301105.80 SB 2 S
Included:
Bracket: M-1 Bracket (P/N:2503503.00)
Electrical Data:
Type: 1/2 λ
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: TX band: 156 – 157.425 MHz @ SWR ≤ 1.5
RX band: 156 – 162 MHz @ SWR ≤ 2
Systems: VHF Marine Band
Gain: 0 dBd – 2.15 dBi
Max Power: 100 W (CW)
Grounding protection: DC-Ground

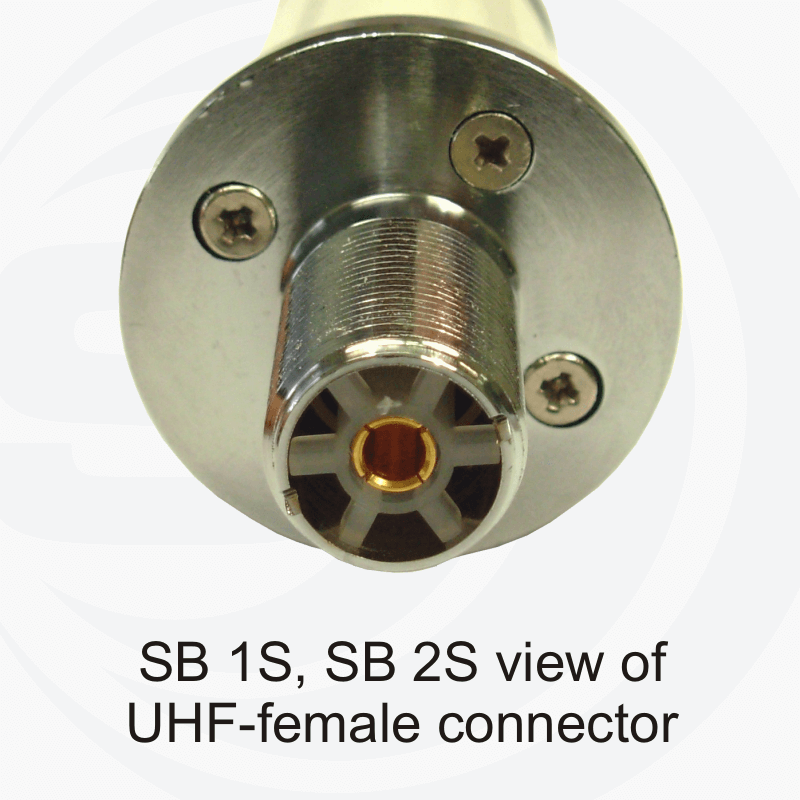

Connector: UHF-female (SO-239)
Mechanical Data:
Materials: Chromed brass, Stainless Steel 17/7 PH, Fiberglass, Nylon
Height (approx):
SB 1 S:
955 mm / 3.13 ft
SB 2 S:
1040 mm / 3.41 ft
Weight (approx):
SB 1 S:
360 gr / 0.79 lb
SB 2 S:
330 gr / 0.73 lb
Mounting type: On-Mast, On-Wall
