MADE IN ITALY since 1972

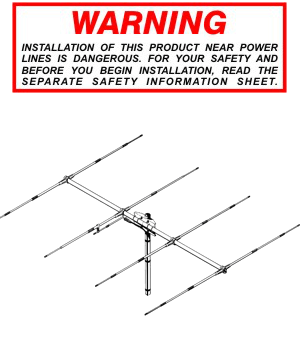

SY-4


Product Number:
P/N: 2105201.00 SY-4
Electrical Data:
Type: 4 elements Yagi
Radiation: Directional
Polarization: Linear Horizontal
Frequency range: 26.5 ... 30 MHz Tunable
Systems: 10m-HAM
Gain: 11 dBd, 13.15 dBi
Bandwidth: ≥ 850KHz @ SWR ≤ 2
Max Power: 1000 Watts (CW) continuous
3000 Watts (CW) short time
Grounding protection: All metal parts are DC-grounded, the inner conductor is coupled capacitively
Connector: UHF-female (SO-239)
Mechanical Data:
Materials: Aluminium, Galvanized steel, Zamak
Dimensions (approx): 5846 x 4030 x 100 mm / 19.18 x 13.22 x 0.33 ft
Weight (approx): 6100 gr / 13.45 lb

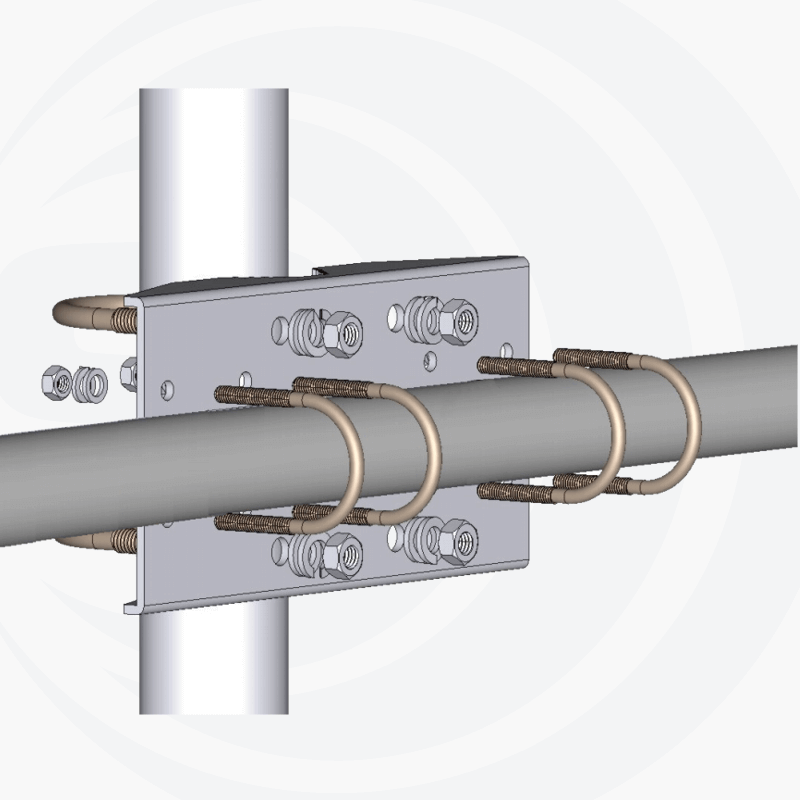

Mounting type: On-Mast
