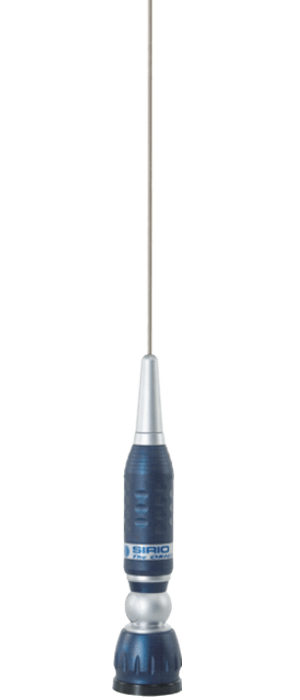

TURBO Low Band Blue Line


Product Number:
P/N: 2213005.40/A TURBO LB A-type
Included:
Cable: 4m/13ft Cable for NE-PL, Turbo and Performer (P/N:2505905.00)
P/N: 2213005.40/B TURBO LB B-type
Included:
Cable: 4m/13ft Cable for NE-PL, Turbo and Performer (P/N:2505905.00)
P/N: 2213005.40/C TURBO LB C-type
Included:
Cable: 4m/13ft Cable for NE-PL, Turbo and Performer (P/N:2505905.00)
P/N: 2213005.40/D TURBO LB D-type
Included:
Cable: 4m/13ft Cable for NE-PL, Turbo and Performer (P/N:2505905.00)
P/N: 2213005.40/E TURBO LB E-type
Included:
Cable: 4m/13ft Cable for NE-PL, Turbo and Performer (P/N:2505905.00)
P/N: 2213005.41/A TURBO LB PL A-type
P/N: 2213005.41/B TURBO LB PL B-type
P/N: 2213005.41/C TURBO LB PL C-type
P/N: 2213005.41/D TURBO LB PL D-type
P/N: 2213005.41/E TURBO LB PL E-type
Electrical Data:
Type: 1/4 λ
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range:
TURBO LB A-type:
29.0 … 32.5 MHz Tunable
TURBO LB B-type:
32.5 … 37.0 MHz Tunable
TURBO LB C-type:
37.0 … 43.0 MHz Tunable
TURBO LB D-type:
42.5 … 51.5 MHz Tunable
TURBO LB E-type:
51.5 … 67.5 MHz Tunable
TURBO LB PL A-type:
29.0 … 32.5 MHz Tunable
TURBO LB PL B-type:
32.5 … 37.0 MHz Tunable
TURBO LB PL C-type:
37.0 … 43.0 MHz Tunable
TURBO LB PL D-type:
42.5 … 51.5 MHz Tunable
TURBO LB PL E-type:
51.5 … 67.5 MHz Tunable
Systems: 6m-HAM, AM
Gain: 0 dB ref. to a λ/4 whip
Bandwidth:
TURBO LB A-type:
≥ 1.2MHz @ SWR ≤ 2
TURBO LB B-type:
≥ 1.8MHz @ SWR ≤ 2
TURBO LB C-type:
≥ 2.1MHz @ SWR ≤ 2
TURBO LB D-type:
≥ 3.1MHz @ SWR ≤ 2
TURBO LB E-type:
≥ 7.5MHz @ SWR ≤ 2
TURBO LB PL A-type:
≥ 1.2MHz @ SWR ≤ 2
TURBO LB PL B-type:
≥ 1.8MHz @ SWR ≤ 2
TURBO LB PL C-type:
≥ 2.1MHz @ SWR ≤ 2
TURBO LB PL D-type:
≥ 3.1MHz @ SWR ≤ 2
TURBO LB PL E-type:
≥ 7.5MHz @ SWR ≤ 2
Max Power: 200 W (CW)
Grounding protection: DC-Ground
Connector:
TURBO LB A-type:
Not supplied
TURBO LB B-type:
Not supplied
TURBO LB C-type:
Not supplied
TURBO LB D-type:
Not supplied
TURBO LB E-type:
Not supplied
TURBO LB PL A-type:
UHF-male (PL-259)
TURBO LB PL B-type:
UHF-male (PL-259)
TURBO LB PL C-type:
UHF-male (PL-259)
TURBO LB PL D-type:
UHF-male (PL-259)
TURBO LB PL E-type:
UHF-male (PL-259)
Mechanical Data:
Materials: Chromed brass, Stainless Steel 17/7 PH, Nylon
Height (approx): 1450 mm / 4.76 ft
Weight (approx): 400 gr / 0.88 lb
Mounting type:
TURBO LB A-type:
Thru-Hole
TURBO LB B-type:
Thru-Hole
TURBO LB C-type:
Thru-Hole
TURBO LB D-type:
Thru-Hole
TURBO LB E-type:
Thru-Hole
TURBO LB PL A-type:
On-Connector
TURBO LB PL B-type:
On-Connector
TURBO LB PL C-type:
On-Connector
TURBO LB PL D-type:
On-Connector
TURBO LB PL E-type:
On-Connector
Suitable Accessories:
Magnetic Mount: PM 125 PL (P/N:2502602.05)
Magnetic Mount: MAG 145 PL (P/N:2502702.05)
Connector: UHF-male (PL-259) (P/N: 2505600.00)
