AS series

AS_series

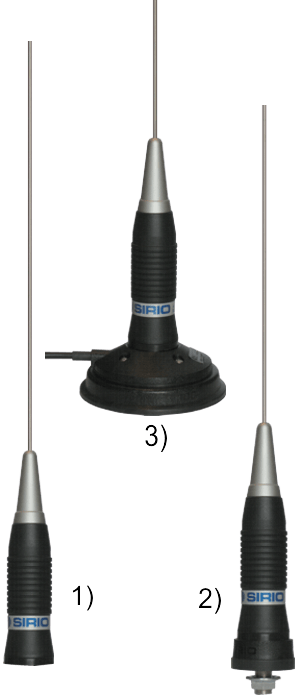

1) AS 100, 145, 170 PL
2) AS 100, 145, 170 N
3) AS 100 MAG

Product Number:
P/N: 2209005.05 AS 100 PL
P/N: 2201405.05 AS 145 PL
P/N: 2201605.05 AS 170 PL
P/N: 2209005.23 AS 100 N
Included:

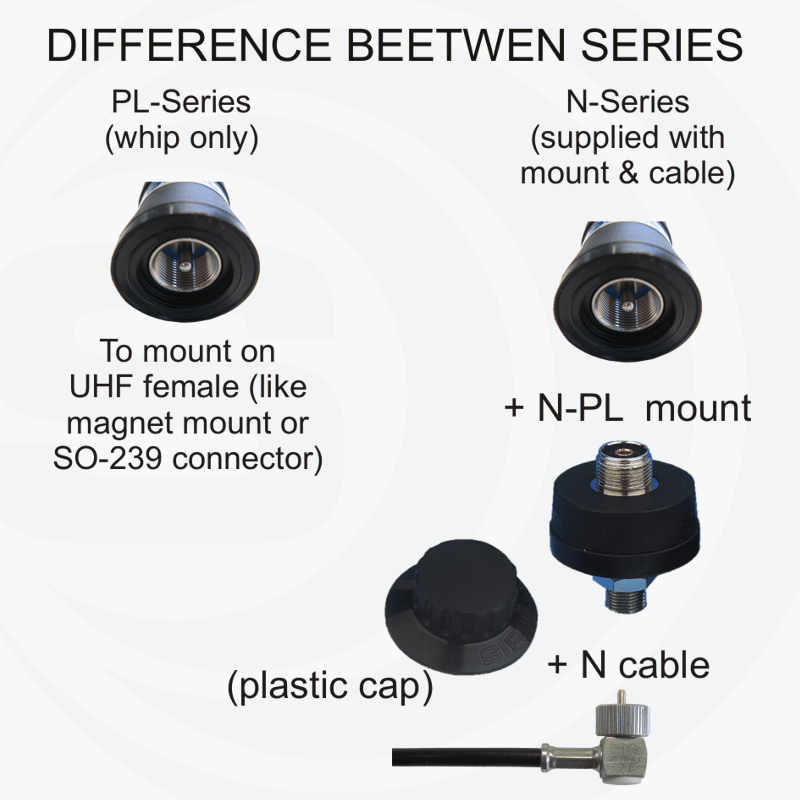

Hole mount: N-PL (P/N:2500502.05)
Cable: 4m/13ft Cable for N or N-PL mounts (P/N:2505705.00)
P/N: 2201405.23 AS 145 N
Included:
Hole mount: N-PL (P/N:2500502.05)
Cable: 4m/13ft Cable for N or N-PL mounts (P/N:2505705.00)
P/N: 2201605.23 AS 170 N
Included:
Hole mount: N-PL (P/N:2500502.05)
Cable: 4m/13ft Cable for N or N-PL mounts (P/N:2505705.00)
P/N: 2209005.61 AS 100 MAG
Included:
Magnetic Mount: PM-100 PL (P/N:2502502.05)
P/N: 2209006.61 AS 100 BLACK MAG
Included:
Magnetic Mount: PM-100 PL (P/N:2502502.05)
Electrical Data:
Type: Base loaded
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 27 … 28.5 MHz Tunable
Systems: CB 27MHz, 10m-HAM
Bandwidth:
AS 100 PL:
≥ 580KHz @ SWR ≤ 2
AS 145 PL:
≥ 1.24MHz @ SWR ≤ 2
AS 170 PL:
≥ 1.94MHz @ SWR ≤ 2
AS 100 N:
≥ 580KHz @ SWR ≤ 2
AS 145 N:
≥ 1.24MHz @ SWR ≤ 2
AS 170 N:
≥ 1.94MHz @ SWR ≤ 2
AS 100 MAG:
≥ 580KHz @ SWR ≤ 2
AS 100 BLACK MAG:
≥ 580KHz @ SWR ≤ 2
Max Power:
AS 100 PL:
100 Watts (CW) continuous
300 Watts (CW) short time
AS 145 PL:
150 Watts (CW) continuous
450 Watts (CW) short time
AS 170 PL:
200 Watts (CW) continuous
600 Watts (CW) short time
AS 100 N:
100 Watts (CW) continuous
300 Watts (CW) short time
AS 145 N:
150 Watts (CW) continuous
450 Watts (CW) short time
AS 170 N:
200 Watts (CW) continuous
600 Watts (CW) short time
AS 100 MAG:
100 Watts (CW) continuous
300 Watts (CW) short time
AS 100 BLACK MAG:
100 Watts (CW) continuous
300 Watts (CW) short time
Grounding protection: DC-Ground
Cable lenght / type:
AS 100 PL:
Not supplied
AS 145 PL:
Not supplied
AS 170 PL:
Not supplied
AS 100 N:
4 m (13.12 ft) / RG58
AS 145 N:
4 m (13.12 ft) / RG58
AS 170 N:
4 m (13.12 ft) / RG58
AS 100 MAG:
3.6 m (11.81 ft) / RG58
AS 100 BLACK MAG:
3.6 m (11.81 ft) / RG58
Connector:
AS 100 PL:
UHF-male (PL-259)
AS 145 PL:
UHF-male (PL-259)
AS 170 PL:
UHF-male (PL-259)
AS 100 N:
Not supplied
AS 145 N:
Not supplied
AS 170 N:
Not supplied
AS 100 MAG:
UHF-male (PL-259)
AS 100 BLACK MAG:
UHF-male (PL-259)
Mechanical Data:
Materials: Copper, Brass, Stainless Steel 17/7 PH, Nylon
Height (approx):
AS 100 PL:
1020 mm / 3.35 ft
AS 145 PL:
1400 mm / 4.59 ft
AS 170 PL:
1670 mm / 5.48 ft
AS 100 N:
1020 mm / 3.35 ft
AS 145 N:
1400 mm / 4.59 ft
AS 170 N:
1670 mm / 5.48 ft
AS 100 MAG:
1020 mm / 3.35 ft
AS 100 BLACK MAG:
1020 mm / 3.35 ft
Weight (approx):
AS 100 PL:
180 gr / 0.4 lb
AS 145 PL:
200 gr / 0.44 lb
AS 170 PL:
240 gr / 0.53 lb
AS 100 N:
180 gr / 0.4 lb
AS 145 N:
200 gr / 0.44 lb
AS 170 N:
240 gr / 0.53 lb
AS 100 MAG:
240 gr / 0.53 lb
AS 100 BLACK MAG:
240 gr / 0.53 lb
Mounting type:
AS 100 PL:
On-Connector
AS 145 PL:
On-Connector
AS 170 PL:
On-Connector
AS 100 N:
Thru-Hole
AS 145 N:
Thru-Hole
AS 170 N:
Thru-Hole
AS 100 MAG:
Magnetic mount
AS 100 BLACK MAG:
Magnetic mount
Suitable Accessories:
Hole mount: NE-PL (P/N:2500602.05)
Magnetic Mount: PM 125 PL (P/N:2502602.05)
Magnetic Mount: MAG 145 PL (P/N:2502702.05)
Cable: SG AC/U Angular connector (P/N:2513005.00)
Cable: SO-239 Angular connector w/cable (P/N:2506105.00)
Bracket: ABN-2 Trunk Mount (P/N:2504105.00)
Bracket: KF Gutter mount (P/N:2504205.00)
Bracket: Asp-1 Chrome (P/N:2504004.00)
Connector: UHF-male (PL-259) (P/N: 2505600.00)
