MADE IN ITALY since 1972

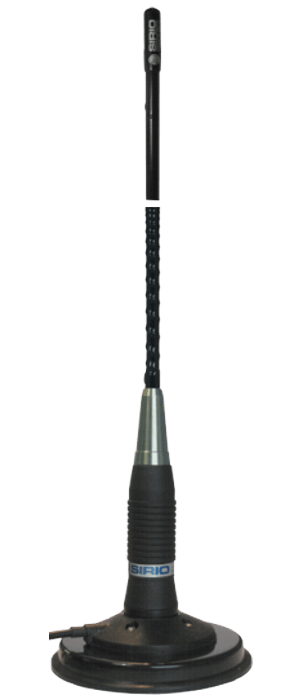

T3-AS MAG


Product Number:
P/N: 2206815.63 T3-AS MAG
Included:
Magnetic Mount: PM 125 PL (P/N:2502602.05)
Electrical Data:
Type: Logarithmic loaded
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 26.9 … 27.5 MHz Tunable
Systems: CB 27MHz
Bandwidth: ≥ 700KHz @ SWR ≤ 2
Max Power: 20 Watts (CW) continuous
100 Watts (CW) short time
Cable lenght / type: 3.6 m (11.81 ft) / RG58
Connector: UHF-male (PL-259)
Mechanical Data:
Materials: Brass, Stainless steel, Fiberglass, Nylon
Height (approx): 620 mm / 2.03 ft
Weight (approx): 400 gr / 0.88 lb
Mounting type: Magnetic mount
Suitable Accessories:
Hole mount: N-PL (P/N:2500502.05)
